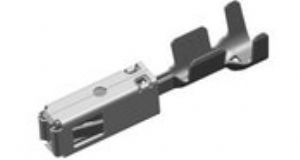

BOSCH BTC 2.8 - Bosch Terminal Clean-Body
概述
Features
- For high current load
- For high vibration levels
- Usable up to 130 °C (Sn-plated)
- Cleanbody design
- Secondary lockable
- 4 contact points
Accesories
-
Single wire seals:
- reddish-brown
- orange
-
Crimping pliers:
- 1.50 to 2.50 mm²
-
Crimping tool:
- 1.50 to 2.50 mm²
-
Consumables kit for the crimping tool:
- 1.50 to 2.50 mm²
- Disassembly tool
- Test probe
Product information
| part designation (long form) | terminal |
| part number | 1 928 498 806 |
| offer drawing | 1 928 A00 395 |
| technical customer documentation | 1 928 A01 23T |
| processing specification | 1 928 A00 04V |
目标市场及应用
Technical Features
| Wire cross-sections | 1.50…2.50 mm² |
| Grid dimension | 6 mm |
| Row distance | 6 mm (5 mm) |
| Temperature range | -40…+130 °C (tin-plated) |
| Wire seal | single wire seal |
| Nominal voltage | 20 mV…40 V (DC) |
| Current rating | maximal 27 A (Sn) |
| Supply | terminal reels of 4,000 terminals |
Technical information
| packing unit | 4000 pc. |
| minimum order quantity | 4000 pc. |
| time of delivery | on request |
| terminal type | Box shaped terminal |
| type of locking mechanism (terminals) | Clean-Body terminal |
| temperature range, from | -40 °C |
| temperature range, till | +130 °C |
| terminal surface | tin-plated |
| wire cross section | 1.5 - 2.5 mm² |
| seal of wire | single wire seal |
| line voltage from | 20 mV (DC) |
| line voltage to | 40 V (DC) |
| current-carrying capacity | maximal 28.5 A |
