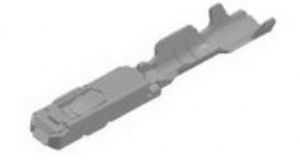

BOSCH BCB 0.6 - Bosch Clean-Body terminal
概述
Features
- For small pitches
- High long-time heat resistance (up to 130 °C, Sn-plated)
- Secondary lockable
- High shockproof
- Usable with sealing plate
Accesories
- crimping tool: 0.35...0.5 / 0.75 / 0.85 mm²
- quick-change tool: 0.35...0.5 / 0.75 / 0.85 mm²
- consumables kit for the quick-change tool: 0.35...0.5 / 0.75 / 0.85 mm²
- disassembly tool
- spare pins for disassembly tool
Technical Features
| Wire cross-sections | 0.35…0.75 mm² |
| Grid dimension | 2.5 mm |
| Row distance | 2.5 mm....5 mm |
| Temperature range | -40…+130 °C (tin-plated) |
| Wire seal | Sealing plate (silicon) |
| Nominal voltage | 50 mV…42 V (DC) |
| Current rating | See derating curves in technical customer information |
| Supply | Contact reels of 12.500 contacts |
1928492555
1928492556
1928498748
1928499044
1928499045
