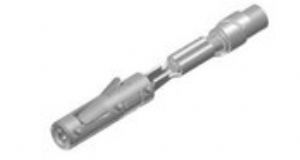

BOSCH BMK 0.6 - Bosch micro terminal
概述
Features
- for a small grid dimension
- high long-time temperature stability
- secondary locking possible
- high vibration stability
- suitable for use with silicone gel-seal
Accesories
- hand crimping tool: 0.35/0.5/0.75 mm²
- crimping tool: 0.35...0.5 mm², 0.5...0.75 mm²
- wear and tear part set for crimping tool: 0.35...0.5 mm², 0.5...0.75 mm²
- disassembly tool
- spare needles for disassembly tool
- terminal template
Technical Features
| Wire cross-sections | 0.35...0.75 mm² |
| Grid dimension | 2.5 mm |
| Row distance | 2.5 mm (4 mm) |
| Temperature range | -40...+130 °C (tin-coated version), -40...+150 °C (gold-plated version) |
| Wire sealing | silicone gel-seal |
| Nominal voltage | 20 mV...40 V (DC) |
| Current-carrying capacity | maximal 6 A (with 90 °C and Au-surface) |
| Delivery | 11.000 one-way springs |
1928498000
1928498001
1928498002
1928498003
1928498004
1928498005
1928498013
1928498014
1928498015
1928498016
