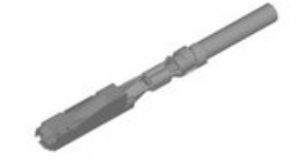

BOSCH MATRIX 1.2
概述
Features
- To be used up to 150 °C (Au- or Ag-plated)
- Secondary locking possible
- 4 contact points
- with silicon gel-seal or single-wire seal
Technical Features
| Wire cross-sections | 0.35…1.5 mm² |
| Pitch distance | 2.5...4.0 mm |
| Row distance | 2.5...3.5 mm |
| Temperature range | -40…+130 °C (tin-plated) |
| Wire seal | silicon gel-seal or single wire seal |
| Nominal voltage | 50 mV…42 V (DC) |
| Current rating | see derating curve in TKU |
| Lot | reels of 5000 contacts |
