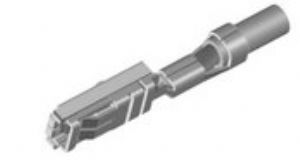

BOSCH BSK 2.8 - Bosch sensor-terminal
概述
Features
- for high vibration resistance
- usable up to 150 °C (Au-surface)
- secondary locking possible
- 4 terminal points
Accesories
- single wire seal: blue or white
- hand crimping tool 0.6 and 2 mm² and 2.5 mm² 0.5/0.75/1 mm²
- crimping tool: 0.5...1 mm², 1.5...2.5 mm²
- wear and tear part set for crimping tool: 0.5...1 mm², 1.5...2.5 mm²
- disassembly tool
- spare needles for disassembly tool
- terminal template
Technical Features
| Wire cross-sections | 0.5...2.5 mm² |
| Grid dimension | 5 mm |
| Row distance | 5 mm (5.5 mm) |
| Temperature range |
|
| Wire sealing | single wire seal |
| Nominal voltage | 20 mV...40 V (DC) |
| Current-carrying capacity | maximal 14 A (with 90 °C and Au-surface) |
| Delivery | 4.500 one-way springs |
1928498060
1928498061
1928498062
1928498063
