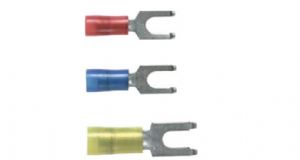

PANDUIT 尼龙绝缘折边叉形端子
概述
• Fork design provides for fast and easy installation, without the need to remove fastener• Flange design provides extra secure connection on a variety of applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PN18-6FF-C | 22-18 AWG | Red | 0.03 | 0.136 | #6 | 0.81 | 0.28 | 0.2 |
| PN18-8FF-C | 22-18 AWG | Red | 0.03 | 0.136 | #8 | 0.88 | 0.31 | 0.23 |
| PN18-10FF-C | 22-18 AWG | Red | 0.03 | 0.136 | #10 | 0.86 | 0.35 | 0.23 |
| PN14-6FF-C | 18-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.79 | 0.28 | 0.2 |
| PN14-8FF-C | 18-14 AWG | Blue | 0.03 | 0.162 | #8 | 0.86 | 0.31 | 0.23 |
| PN14-10FF-C | 18-14 AWG | Blue | 0.03 | 0.162 | #10 | 0.86 | 0.36 | 0.23 |
| PN10-8FF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.05 | 0.37 | 0.28 |
| PN10-10FF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.05 | 0.37 | 0.28 |
