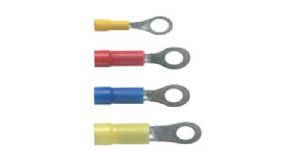

PANDUIT 乙烯绝缘环形端子
概述
• Insulation support helps to prevent wire damage in bending applications• Ring tongue design assures a secure connection in high vibration applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up 600 V per UL 486A/B
| Part | Wire Range | Color Code | Stock Thickness(In.) | Max. Ins. | Stud Size | L | W | C | Recommended Installation Tool |
| PV22-2R-CY | 26-22 AWG | Yellow | 0.02 | 0.110 | #2 | 0.68 | 0.21 | 0.18 | CT-600-A,CT-1525,CT-2500 |
| PV22-4R-CY | 26-22 AWG | Yellow | 0.02 | 0.110 | #4 | 0.68 | 0.21 | 0.18 | CT-600-A,CT-1525,CT-2500 |
| PV22-6R-CY | 26-22 AWG | Yellow | 0.02 | 0.110 | #6 | 0.68 | 0.21 | 0.18 | CT-600-A,CT-1525,CT-2500 |
| PV22-8R-CY | 26-22 AWG | Yellow | 0.02 | 0.110 | #8 | 0.78 | 0.26 | 0.26 | CT-600-A,CT-1525,CT-2500 |
| PV22-10R-CY | 26-22 AWG | Yellow | 0.02 | 0.110 | #10 | 0.78 | 0.32 | 0.24 | CT-600-A,CT-1525,CT-2500 |
| PV18-4R-CY | 22-18 AWG | Red | 0.03 | 0.150 | #4 | 0.84 | 0.25 | 0.22 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV18-6R-CY | 22-18 AWG | Red | 0.03 | 0.150 | #6 | 0.86 | 0.25 | 0.22 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV18-8R-CY | 22-18 AWG | Red | 0.03 | 0.150 | #8 | 0.91 | 0.31 | 0.26 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV18-10R-CY | 22-18 AWG | Red | 0.03 | 0.150 | #10 | 0.94 | 0.31 | 0.27 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV18-14R-CY | 22-18 AWG | Red | 0.03 | 0.150 | 1/4" | 1.11 | 0.46 | 0.37 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV18-56R-CY | 22-18 AWG | Red | 0.03 | 0.150 | 5/16" | 1.11 | 0.46 | 0.39 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV18-38R-LY | 22-18 AWG | Red | 0.03 | 0.150 | 3/8" | 1.19 | 0.53 | 0.42 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV18-12R-LY | 22-18 AWG | Red | 0.03 | 0.150 | 1/2" | 1.42 | 0.72 | 0.53 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-4R-C | 16-14 AWG | Blue | 0.03 | 0.170 | #4 | 0.84 | 0.25 | 0.19 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-6RN-C | 16-14 AWG | Blue | 0.03 | 0.170 | #6 | 0.84 | 0.25 | 0.19 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-6R-C | 16-14 AWG | Blue | 0.03 | 0.170 | #6 | 0.92 | 0.31 | 0.25 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-8R-C | 16-14 AWG | Blue | 0.03 | 0.170 | #8 | 0.92 | 0.31 | 0.25 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-10R-C | 16-14 AWG | Blue | 0.03 | 0.170 | #10 | 0.92 | 0.31 | 0.25 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-14R-C | 16-14 AWG | Blue | 0.03 | 0.170 | 1/4" | 1.12 | 0.46 | 0.38 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-56R-C | 16-14 AWG | Blue | 0.03 | 0.170 | 5/16" | 1.12 | 0.46 | 0.38 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-38R-L | 16-14 AWG | Blue | 0.03 | 0.170 | 3/8" | 1.21 | 0.53 | 0.43 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV14-12R-L | 16-14 AWG | Blue | 0.03 | 0.170 | 1/2" | 1.42 | 0.72 | 0.53 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV10-6R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 1.05 | 0.31 | 0.31 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV10-8R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.05 | 0.31 | 0.31 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV10-10R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.05 | 0.31 | 0.31 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV10-14R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.23 | 0.52 | 0.38 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV10-56R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 5/16" | 1.23 | 0.52 | 0.38 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV10-38R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 3/8" | 1.31 | 0.58 | 0.41 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
| PV10-12R-Q | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/2" | 1.46 | 0.72 | 0.53 | CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡ |
