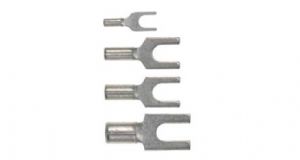

PANDUIT 叉形裸端
概述
• Fork design provides for fast and easy installation, without the need to remove fastener• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process
• Barrel of terminal internally beveled to provide quick and easy wire insertion
• Maximum recommended operating temperature 302°F (150°C)
• UL and CSA rated up to 2000 V per UL 486A/B
| Part | Wire Range | Stock Thickness(In.) | Stud Size | L | W | C | Recommended Installation Tool |
| P22-2F-C | 26-22 AWG | 0.02 | #2 | 0.49 | 0.19 | 0.19 | CT-200 |
| P22-4F-C | 26-22 AWG | 0.02 | #4 | 0.49 | 0.2 | 0.19 | CT-200 |
| P22-6F-C | 26-22 AWG | 0.02 | #6 | 0.59 | 0.25 | 0.26 | CT-200 |
| P18-6FN-C | 22-16 AWG | 0.03 | #6 | 0.63 | 0.24 | 0.19 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P18-6F-C | 22-16 AWG | 0.03 | #6 | 0.63 | 0.3 | 0.21 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P18-8F-C | 22-16 AWG | 0.03 | #8 | 0.69 | 0.32 | 0.25 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P18-10FN-C | 22-16 AWG | 0.03 | #10 | 0.71 | 0.31 | 0.25 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P18-10F-C | 22-16 AWG | 0.03 | #10 | 0.71 | 0.35 | 0.25 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P18-14F-C | 22-16 AWG | 0.03 | 1/4" | 0.88 | 0.44 | 0.33 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-6FN-C | 18-14 AWG | 0.03 | #6 | 0.63 | 0.24 | 0.2 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-6F-C | 18-14 AWG | 0.03 | #6 | 0.63 | 0.28 | 0.2 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-8F-C | 18-14 AWG | 0.03 | #8 | 0.69 | 0.31 | 0.23 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-10FN-C | 18-14 AWG | 0.03 | #10 | 0.71 | 0.31 | 0.25 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-10F-C | 18-14 AWG | 0.03 | #10 | 0.71 | 0.34 | 0.25 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-14F-C | 18-14 AWG | 0.03 | 1/4" | 0.88 | 0.44 | 0.33 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P10-6F-L | 12-10 AWG | 0.04 | #6 | 0.75 | 0.31 | 0.22 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-1701‡,CT-2500‡ |
| P10-8F-L | 12-10 AWG | 0.04 | #8 | 0.78 | 0.37 | 0.22 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-1701‡,CT-2500‡ |
| P10-10F-L | 12-10 AWG | 0.04 | #10 | 0.78 | 0.37 | 0.23 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-1701‡,CT-2500‡ |
| P10-14F-L | 12-10 AWG | 0.04 | 1/4" | 0.89 | 0.5 | 0.3 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-1701‡,CT-2500‡ |
