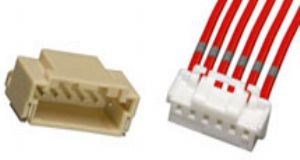

Molex DuraClik™ 连接器系统

概述

产品亮点
类别:
线对板连接器
间距:
2.00 毫米
回路数:
2 - 15
电流:
3.0A


特性和优点
Standard Components:
内部锁紧设计
Provides space savings and prevents latch breakage from wire tangling
"Click" sound when mated
Audible mating confirmation
Secure PCB retention using a shock-proof SMT design with wide solder tabs (nails)
Provides secure PCB retention that can withstand upward pull force of 100N (10kgf) to meet automotive vibration requirements
Enclosed terminal design
Protects contact against dust and debris; avoids tangling during harness assembly
Open area for pick-and-place assembly
Supports automated board placement without the need for Kapton tape
ISL and TPA Components:
Specific terminal copper alloy
Meets high automotive passenger compartment requirements requiring operating temperatures -40 up to 125°C
Independent Secondary Locking (ISL)
Terminal retention forces up to 50N; helps position terminal
Terminal Positioning Assurance (TPA)
Provides up to 30N of terminal retention; helps position terminal



DuraClik connectors are a 2.00 mm pitch, unsealed, wire-to-board connection system for right-angled and vertical PCB mounting options.For signal current of 3.0A this system is designed to provide space savings and superior performance for high-vibration and high temperature applications in the automotive and lighting industry.The enhanced versions of DuraClik are a secondary locking feature with an Independent Secondary locking (ISL) or a Terminal Positioning Assurance (TPA) to meet changing market requirements of our customers.
