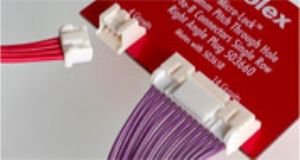

Molex Micro-Lock™ 连接器

概述

产品亮点
类别:
线对板连接器
间距:
1.25、2.00 毫米
回路数:
2 - 40
电流:
1.5,3.0A


特性和优点
防损坏插针保护特性
防止排针压弯或压断,即使在进行有角度的插配时
Compact size and low profile
节省空间
Low-insertion force with tin plating
易插拔
Provides a more cost-effective design over gold plating
宽插配锁闩,带两点确立锁定
Provides secure-mating retention, additional mechanical stability and good “click” feeling
低卤素胶壳和线束材料
Meets environmental standards



The Micro-Lock™ connector family consists of two sub-families in 1.25 and 2.00 mm pitch.The 2.00 mm pitch version is a single-row right-angle system available in 2 to 15 circuits with a maximum current rating of 3.0A. The 1.25 mm pitch version is available in straight and right-angle styles for both single and dual rows with a maximum current rating of 1.5A. The single-row type is offered in 2 to 16 circuits while the dual-row style is offered in 16 to 40 circuits.Micro-Lock connectors are finding use in applications for a variety of industries that require space savings and contact assurance.

Both pitch styles include a “damage-free” pin feature that protects contacts during forced or angled mating.This feature is comprised of guard walls and detent features that guide the housing into the header without allowing the pin to be touched until proper mating alignment is achieved.Both systems also include an outer thumb-latch design with two locking points for secure mating, and a tin-plated contact design that provides low insertion force even when compared to gold-plated versions.
