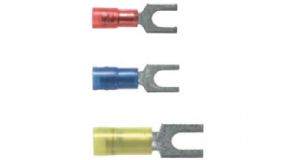

PANDUIT 漏斗口尼龙绝缘叉形端子
概述
• Fork design provides for fast and easy installation, without the need to remove fastener• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡
| Part | Wire Range | Color Code |
Stock Thickness
(In.)
|
Max. Ins. | Stud Size | L | W | C |
| PNF18-6F-C | 22-18 AWG | Red | 0.03 | 0.136 | #6 | 0.8 | 0.3 | 0.22 |
| PNF18-8F-C | 22-18 AWG | Red | 0.03 | 0.136 | #8 | 0.86 | 0.31 | 0.25 |
| PNF18-10F-C | 22-18 AWG | Red | 0.03 | 0.136 | #10 | 0.87 | 0.34 | 0.26 |
| PNF18-14F-C | 22-18 AWG | Red | 0.03 | 0.136 | 1/4" | 1.05 | 0.44 | 0.35 |
| PNF14-6F-C | 16-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.8 | 0.28 | 0.22 |
| PNF14-8F-C | 16-14 AWG | Blue | 0.03 | 0.162 | #8 | 0.85 | 0.31 | 0.25 |
| PNF14-10F-C | 16-14 AWG | Blue | 0.03 | 0.162 | #10 | 0.87 | 0.34 | 0.26 |
| PNF14-14F-C | 16-14 AWG | Blue | 0.03 | 0.162 | 1/4" | 1.05 | 0.44 | 0.35 |
| PNF10-6F-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 1.01 | 0.31 | 0.24 |
| PNF10-8F-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.02 | 0.37 | 0.24 |
| PNF10-10F-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.04 | 0.37 | 0.24 |
| PNF10-14F-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.15 | 0.5 | 0.31 |
