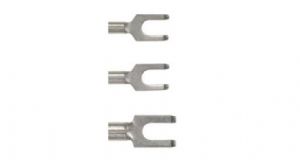

PANDUIT 折边叉形裸端
概述
• Fork design provides for fast and easy installation, without the need to remove fastener• Flange design provides extra secure connection on a variety of applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process
• Barrel of terminal internally beveled to provide quick and easy wire insertion
• Maximum recommended operating temperature 302°F (150°C)
• UL and CSA rated up to 2000 V per UL 486A/B
| Part | Wire Range | Stock Thickness(In.) | Stud Size | L | W | C | Recommended Installation Tool |
| P18-8FF-C | 22-16 AWG | 0.03 | #8 | 0.72 | 0.31 | 0.25 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-6FF-C | 16-14 AWG | 0.03 | #6 | 0.65 | 0.28 | 0.22 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P14-8FF-C | 16-14 AWG | 0.03 | #8 | 0.72 | 0.31 | 0.25 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-2500‡ |
| P10-10FF-L | 12-10 AWG | 0.04 | #10 | 0.8 | 0.38 | 0.28 | CT-100A‡,CT-200‡,CT-600-A‡,CT-1570‡,CT-1701‡,CT-2500‡ |
