PANDUIT 对接连接器

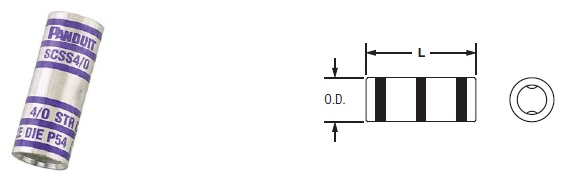

Code Conductor, Short Barrel, Butt Splice

Type SCSS

Part Number Copper Conductor Size Barrel O.D. L
Panduit
Color Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
SCSS8-L #8 AWG 0.27 1 Red P21 49 21 7/16
SCSS6-L #6 AWG 0.31 1 Blue P24 7 24 7/16
SCSS4-L #4 AWG 0.38 1 Gray P29 8 29 7/16
SCSS2-Q #2 AWG 0.42 1.25 Brown P33 10 33 9/16
SCSS1-Q #1 AWG 0.46 1.44 Green P37 11 37 11/16
SCSS1/0-X 1/0 AWG 0.52 1.44 Pink P42 12 42 11/16
SCSS2/0-X 2/0 AWG 0.58 1.56 Black P45 13 45 3/4
SCSS3/0-X 3/0 AWG 0.64 1.69 Orange P50 14 50 3/4
SCSS4/0-X 4/0 AWG 0.71 1.81 Purple P54 15 54 13/16
SCSS250-X 250 kcmil 0.77 2.19 Yellow P62 16 62 1 1/16

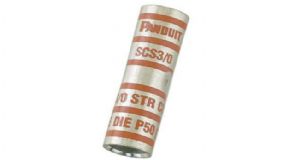

Code Conductor, Standard Barrel, Butt Splice

Type SCS


Part Number Copper Conductor Size Barrel O.D. L
Panduit
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
SCS8-L #8 AWG 0.27 1.5 Red P21 49 21 11/16
SCS6-L #6 AWG 0.31 1.75 Blue P24 7 24 13/16
SCS4-L
#4-#3 AWG STR,
#2 AWG SOL
0.38 1.75 Gray P29 8 29 13/16
SCS2-Q #2 AWG 0.42 1.87 Brown P33 10 33 7/8
SCS1-E #1 AWG 0.47 1.87 Green P37 11 37 7/8
SCS1/0-X 1/0 AWG 0.52 1.87 Pink P42 12 42 7/8
SCS2/0-X 2/0 AWG 0.58 2 Black P45 13 45 15/16
SCS3/0-X 3/0 AWG 0.64 2.12 Orange P50 14 50 1
SCS4/0-X 4/0 AWG 0.71 2.12 Purple P54 15 54 1
SCS250-X 250 kcmil 0.77 2.25 Yellow P62 16 62 1 1/16
SCS300-X 300 kcmil 0.81 2.25 White P66 17 66 1 1/16
SCS350-X 350 kcmil 0.87 2.37 Red P71 18 71 1 1/8
SCS400-6 400 kcmil 0.95 2.5 Blue P76 19 76 1 3/16
SCS500-6 500 kcmil 1.05 2.87 Brown P87 20 87 1 3/8
SCS600-6 600 kcmil 1.18 2.87 Green P94 22 94 1 3/8
SCS750-6 750 kcmil 1.29 3.37 Black P106 24 106 1 5/8
SCS1000-3 1000 kcmil 1.5 3.87 White P125 27 125 1 7/8

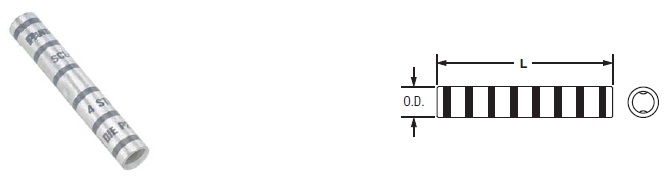

Code Conductor, Long Barrel, Butt Splice

Type SCL

Part Number Copper Conductor Size Barrel O.D. L
Panduit
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
SCL8-L #8 AWG 0.27 2.25 Red P21 49 21 1 1/16
SCL6-L #6 AWG 0.31 2.38 Blue P24 7 24 1 1/8
SCL4-L
#4-#3 AWG STR,
#2 AWG SOL
0.38 2.38 Gray P29 8 29 1 1/8
SCL2-Q #2 AWG 0.42 2.62 Brown P33 10 33 1 1/4
SCL1-E #1 AWG 0.47 2.87 Green P37 11 37 1 3/8
SCL1/0-X 1/0 AWG 0.52 2.87 Pink P42 12 42 1 3/8
SCL2/0-X 2/0 AWG 0.58 3.13 Black P45 13 45 1 1/2
SCL3/0-X 3/0 AWG 0.64 3.12 Orange P50 14 54 1 1/2
SCL4/0-X 4/0 AWG 0.71 3.37 Purple P54 15 54 1 5/8
SCL250-X 250 kcmil 0.77 3.38 Yellow P62 16 62 1 5/8
SCL300-X 300 kcmil 0.81 4.12 White P66 17 66 2
SCL350-X 350 kcmil 0.88 4.12 Red P71 18 71 2
SCL400-6 400 kcmil 0.95 4.37 Blue P76 19 76 2 1/8
SCL500-6 500 kcmil 1.06 4.62 Brown P87 20 87 2 1/4
SCL600-6 600 kcmil 1.19 5.5 Green P94 22 94 2 11/16
SCL750-6 750 kcmil 1.3 5.87 Black P106 24 106 2 7/8
SCL1000-3 1000 kcmil 1.5 6.12 White P125 27 125 3

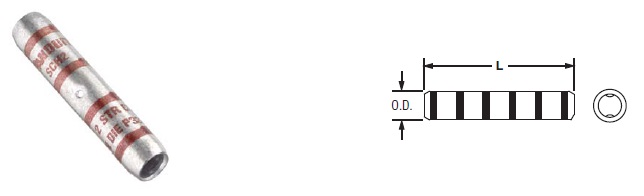

Code Conductor, Long Barrel with Corona Relief Taper Splice

Type SCH


Part Number Copper Conductor Size Barrel O.D. L
Panduit
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
SCH6-L #6 AWG 0.31 1.97 Blue P24 7 24 15/16
SCH4-L #4 AWG 0.38 1.97 Gray P29 8 29 15/16
SCH2-Q #2 AWG 0.42 2.13 Brown P33 10 33 1
SCH1-E #1 AWG 0.47 2.13 Green P37 11 37 1
SCH1/0-X 1/0 AWG 0.52 2.13 Pink P42 12 42 1
SCH2/0-X 2/0 AWG 0.58 2.28 Black P45 13 45 1 1/16
SCH3/0-X 3/0 AWG 0.64 2.47 Orange P50 14 50 1 3/16
SCH4/0-X 4/0 AWG 0.71 2.54 Purple P54 15 54 1 3/16
SCH250-X 250 kcmil 0.77 2.63 Yellow P62 16 62 1 1/4
SCH300-X 300 kcmil 0.82 2.69 White P66 17 66 2
SCH350-X 350 kcmil 0.88 2.84 Red P71 18 71 2
SCH500-6 500 kcmil 1.06 3.53 Brown P87 20 87 2 1/4
SCH750-6 750 kcmil 1.3 4.28 Black P106 24 106 2 7/8
SCH1000-3 1000 kcmil 1.5 5.06 White P125 27 125 3

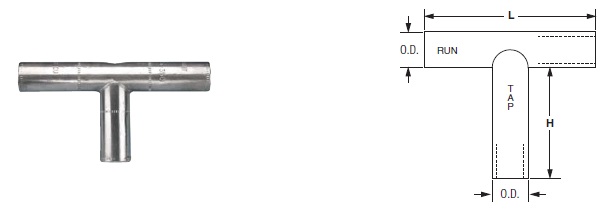

Code Conductor, Long Barrel, T Splice

Type SCT


Part Number Copper Conductor Size
Run
O.D.
Tap
O.D.
Figure Dimensions
Panduit Color Code
and Die Index No.‡
Wire Strip Length (In.)
Run Tap H L Run Tap Run Tap
SCT2-2 #2 AWG #2 AWG 0.42 0.42 1.5 3.88 Brown P33 Brown P33 2 1 9/16
SCT1/0-1/0 1/0 AWG 1/0 AWG 0.51 0.51 1.5 4 Pink P42 Pink P42 2 1/16 1 9/16
SCT2/0-2/0 2/0 AWG 2/0 AWG 0.56 0.56 1.5 4 Black P45 Black P45 2 1/16 1 9/16
SCT4/0-1/0 4/0 AWG 1/0 AWG 0.69 0.51 1.5 4 Purple P54 Pink P42 2 1/16 1 9/16
SCT4/0-4/0 4/0 AWG 4/0 AWG 0.69 0.69 1.63 4.19 Purple P54 Purple P54 2 1/8 1 11/16
SCT250-250 250 kcmil 250 kcmil 0.75 0.75 1.63 4.25 Yellow P62 Yellow P62 2 13/16 1 11/16
SCT300-300 300 kcmil 300 kcmil 0.81 0.81 2 5.44 White P66 White P66 2 13/16 2 1/16
SCT350-350 350 kcmil 350 kcmil 0.88 0.88 2 5.5 Red P71 Red P71 2 13/16 2 1/16
SCT500-4/0 500 kcmil 4/0 AWG 1.06 0.69 2.25 5.81 Brown P87 Purple P54 2 15/16 2 5/16
SCT500-500 500 kcmil 500 kcmil 1.06 1.06 2.5 6.06 Brown P87 Brown P87 3 1/8 2 9/16

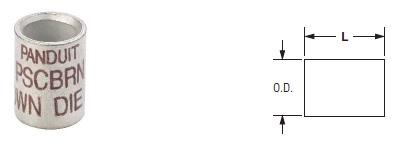

Code Conductor, Color-Coded Parallel Splice

Type PSC


Part Number Figure Dimensions (In.)
Panduit
Color
Code
Panduit
Die Index
No.‡
Wire Strip
Length
(In.)
Barrel O.D. L
PSCRED-L 0.27 0.5 Red P21 7/16
PSCBLU-L 0.31 0.5 Blue P24 7/16
PSCGRY-L 0.38 0.5 Gray P29 7/16
PSCBRN-L 0.47 0.62 Brown P33 11/16
PSCGRN-L 0.52 0.62 Green P37 11/16
PSCPNK-L 0.58 0.62 Pink P42 11/16
PSCBLK-Q 0.64 0.81 Black P45 7/8
PSCORG-Q 0.71 0.81 Orange P50 7/8
PSCPUR-Q 0.77 0.88 Purple P54 1
PSCYEL-Q 0.81 1.05 Yellow P62 1 1/16

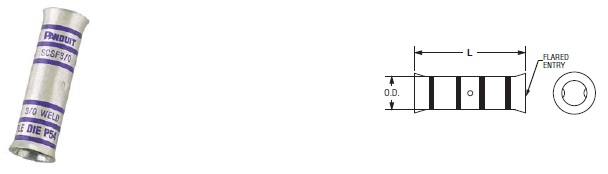

Flex Conductor, Standard Barrel, Flared, NEBS Butt Splice

Type SCSF


Part Number Flex Conductor Size Figure Dimensions(In.)
Panduit
Color
Code
Panduit
Die Index
No.‡
Wire
Strip
Length
Class K and M
Diesel
Locomotive
Barrel O.D. L
SCSF8-L — #8 AWG 0.27 1.5 Red P21  2/3
SCSF6-L #6 AWG #6 AWG 0.31 1.75 Blue P24 13/16
SCSF4-L #4 AWG #4 AWG 0.38 1.75 Gray P29 13/16
SCSF2-E #2 AWG #2 AWG 0.47 1.87 Brown P33  7/8
SCSF1-X #1 AWG #1 AWG 0.52 1.87 Pink P42  7/8
SCSF1/0-X 1/0 AWG 1/0 AWG 0.58 2.5 Black P45 1  3/16
SCSF2/0-X 2/0 AWG 2/0 AWG 0.64 2.5 Orange P50 1  3/16
SCSF3/0-X 3/0 AWG 3/0 AWG 0.71 2.5 Purple P54 1  3/16
SCSF4/0-X 4/0 AWG 4/0 AWG 0.77 2.5 Yellow P62 1  3/16
SCSF250-X 250 kcmil 262.6 kcmil 0.88 2.5 White P66 1  3/16
SCSF300-6 300 kcmil 313.1 kcmi 0.95 2.56 Red P71 1 1/4
SCSF350-6 350 kcmil 373.7 kcmi 1.06 2.94 Blue P76 1 1/2

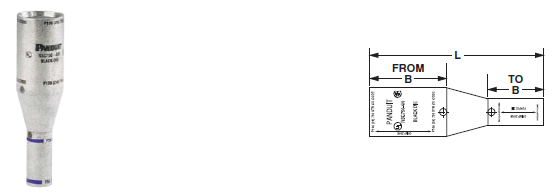

Code/Flex Conductor, with Window, In-Line Reducing Splice

Type RSC

Part Number
Copper Conductor
Size
Figure Dimensions(In.)
Panduit
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
(In.)
B L
RSC4-6-L Reduces From #4 – 3 AWG STR,#2 AWG SOL 1.05 2.54 Gray P29 8 29 1
Reduces To #6 AWG 1.38 Blue P24 7 24 1  5/16
RSC2-6-Q Reduces From #2 AWG 1.05 2.62 Brown P33 10 33 1
Reduces To #6 AWG 1.38 Blue P24 7 34 1  5/16
RSC2-4-Q Reduces From #2 AWG 1.05 2.50 Brown P33 10 33 1
Reduces To #4 – 3 AWG STR,#2 AWG SOL 1.38 Gray P29 8 29 1  5/16
RSC1/0-6-X Reduces From 1/0 AWG 1.05 2.81 Pink P42 12 42 1
Reduces To #6 AWG 1.38 Blue P24 7 24 1  5/16
RSC1/0-4-X Reduces From 1/0 AWG 1.05 2.70 Pink P42 12 42 1
Reduces To #4 – 3 AWG STR,#2 AWG SOL 1.38 Gray P29 8 29 1  5/16
RSC2/0-6-X Reduces From 2/0 AWG 1.13 2.99 Black P45 13 45 1  1/16
Reduces To #6 AWG 1.38 Blue P24 7 24 1  5/16
RSC2/0-4-X Reduces From 2/0 AWG 1.13 2.88 Black P45 13 45 1  1/16
Reduces To #4 – 3 AWG STR,#2 AWG SOL 1.38 Gray P29 8 29 1  5/16
RSC4/0-6-X Reduces From 4/0 AWG 1.13 3.24 Purple P54 15 54 1  1/16
Reduces To #6 AWG 1.38 Blue P24 7 24 1  5/16
RSC4/0-4-X Reduces From 4/0 AWG 1.13 3.12 Purple P54 15 54 1  1/16
Reduces To #4 – 3 AWG STR,#2 AWG SOL 1.38 Gray P29 8 29 1  5/16
RSC4/0-1/0-X Reduces From 4/0 AWG 1.16 3.13 Purple P54 15 54 1  1/16
Reduces To 1/0 AWG 1.63 Pink P42 12 42 1  9/16
RSC4/0-2/0-X Reduces From 4/0 AWG 1.16 2.90 Purple P54 15 54 1  1/16
Reduces To 2/0 AWG 1.5 Black P45 13 45 1  7/16
RSC500-X4/0-6 Reduces From 500 kcmil 1.94 3.97 Brown P87 20 87 1 7/8
Reduces To 4/0 Flex 1.5 Yellow P62 16 62 1  7/16
RSC500-X350-6 Reduces From 500 kcmil 1.94 4.38 Brown P87 20 87 1 7/8
Reduces To 350 Flex 1.94 Blue P76 19 76 1 7/8
RSC750-4/0-6 Reduces From 750 kcmil 2.06 4.66 Black P106 24 106 2
Reduces To 4/0 AWG 1.5 Purple P54 15 54 1 5/8
RSC750-X4/0-6 Reduces From 750 kcmil 2.06 4.54 Black P106 24 106 2
Reduces To 4/0 Flex 1.5 Yellow P62 16 62 1  7/16
RSC750-X350-6 Reduces From 750 kcmil 2.06 4.45 Black P106 24 106 2
Reduces To 350 Flex 1.94 Blue P76 19 76 1 7/8
RSC750-500-6 Reduces From 750 kcmil 2.06 4.45 Black P106 24 106 2
Reduces To 500 kcmil 1.94 Brown P87 20 87 1 7/8
RSC750-X500-6 Reduces From 750 kcmil 2.06 4.63 Black P106 24 106 2
Reduces To 500 Flex 2.06 Pink P99 400 99 2
RSC750-750-6 Reduces From 750 kcmil 2.06 4.63 Black P106 24 106 2
Reduces To 750 kcmil 2.06 Black P106 24 106 2
RSCX750-4/0-3 Reduces From 750 Flex 2.06 5.04 Yellow P115 115 115 2
Reduces To 4/0 AWG 1.5 Purple P54 15 54 1 5/8
RSCX750-750-3 Reduces From 750 Flex 2.06 4.50 Yellow P115 115 115 2
Reduces To 750 kcmil 2.06 Black P106 24 106 2
