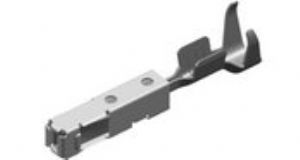

BOSCH 1928498805
概述
Product information
| part designation (long form) | terminal |
| part number | 1 928 498 805 |
| offer drawing | 1 928 A00 394 |
| technical customer documentation | 1 928 A01 22T |
| processing specification | 1 928 A00 03V |
Technical information
| packing unit | 6000 pc. |
| minimum order quantity | 6000 pc. |
| time of delivery | on request |
| terminal type | box-shaped terminal |
| type of locking mechanism (terminals) | Clean-Body terminal |
| row distance | 4 (3.5) mm |
| temperature range, from | -40 °C |
| temperature range, till | +130 °C |
| terminal surface | tin-plated |
| wire cross section | >0.5 - 1 mm² |
| seal of wire | single wire seal |
| line voltage from | 20 mV (DC) |
| line voltage to | 40 V (DC) |
| current-carrying capacity | maximum 19 A (Sn) |
