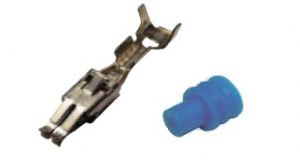

DELPHI HVF II 2.8
| HVF II 2.8 current range max 25A | ||||||
| Part number | Cable range [mm2] | Material | Plating | Version | Tang | |
| HVF II 2.8 F | 12146731 | 0.35 | CuSn4 | Sn | sealed | 2 |
| HVF II 2.8 F | 12146730 | 0.5-1.0 | CuSn4 | Sn | sealed | 2 |
| HVF II 2.8 F | 12146729 | 1.5-2.5 | CuSn4 | Sn | sealed | 2 |
| HVF II 2.8 F | 15345033 | 0.35 | CuSn4 | Sn | sealed | 1 |
| HVF II 2.8 F | 15345034 | 0.5-1.0 | CuSn4 | Sn | sealed | 1 |
| HVF II 2.8 F | 15345035 | 1.5-2.5 | CuSn4 | Sn | sealed | 1 |
| HVF II 2.8 F | 15397224 | 0.35 | CuFe2P | Sn | sealed | 2 |
| HVF II 2.8 F | 15397226 | 0.5-1.0 | CuFe2P | Sn | sealed | 2 |
| HVF II 2.8 F | 15397229 | 1.5-2.5 | CuFe2P | Sn | sealed | 2 |
| HVF II 2.8 F | 15397223 | 0.35 | CuFe2P | Sn | sealed | 1 |
| HVF II 2.8 F | 15397227 | 0.5-1.0 | CuFe2P | Sn | sealed | 1 |
| HVF II 2.8 F | 15397230 | 1.5-2.5 | CuFe2P | Sn | sealed | 1 |
|
Cavity Ø 5.2 mm Selected Delphi sealing products for VF, HVF, HVF II |
|||||
| Loose part | Cable diameter（mm） | Material | Color | %Oil | |
| Cable Seal | 15324974 | 1.2-2.1 | LSR | blue | 2 |
| Seal | 15324976 | 1.6-2.4 | LSR | white | 2 |
| Seal | 10737671 | 1.5-2.3 | LSR | red | 2 |
| Seal | 10737670 | 2.2-2.4 | LSR | blue | 2 |
| Seal | 15324973 | 2-2.9 | LSR | red-brown | 2 |
| Plug | 15337197 | - | LSR | white | 2 |
| Plug | 10730124 | - | LSR | green | 2 |
