CEMBRE 圆形电缆引入系统

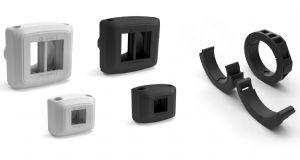

![](/uploadpic/viewpic/p20240627163123_941322.jpg)
概述
公制内螺纹适配穿芯 M25 - M63

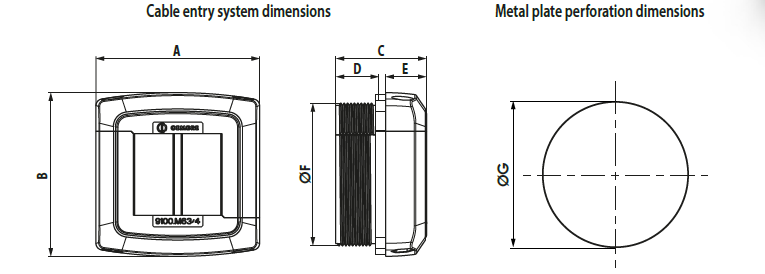

尺寸 | 图例 |
型号
|
颜色
|
小垫圈
数量
|
大垫圈
数量
|
A
[mm]
|
B
[mm]
|
C
[mm]
|
D
[mm]
|
E
[mm]
|
ØF
[mm]
|
固定孔ØG
[mm]
|
|
![]() |
9100.M25 | Grey RAL 7035 | 1 | 0 | 50 | 45.5 | 40 | 19 | 18 | M25x1.5 | 25.4 |
9100.M25N | Black RAL 9005 | 1 | 0 | |||||||||
|
![]() |
9100.M32 | Grey RAL 7035 | 1 | 0 | 50 | 45.5 | 40 | 19 | 18 | M32x1.5 | 32.5 |
9100.M32N | Black RAL 9005 | 1 | 0 | |||||||||
|
![]() |
9100.M50/1 | Grey RAL 7035 | 0 | 1 | 72 | 72 | 40 | 19 | 18 | M50x1.5 | 50.5 |
9100.M50/1N | Black RAL 9005 | 0 | 1 | |||||||||
![]() |
9100.M50/4 | Grey RAL 7035 | 4 | 0 | ||||||||
9100.M50/4N | Black RAL 9005 | 4 | 0 | |||||||||
![]() |
![]() |
9100.M63/1 | Grey RAL 7035 | 0 | 1 | 72 | 72 | 40 | 19 | 18 | M63x1.5 | 64 |
9100.M63/1N | Black RAL 9005 | 0 | 1 | |||||||||
![]() |
9100.M63/4 | Grey RAL 7035 | 4 | 0 | ||||||||
9100.M63/4N | Black RAL 9005 | 4 | 0 |
