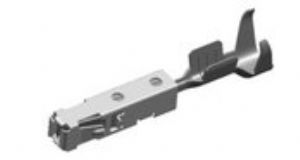

BOSCH BTL 1.5 - Bosch Terminal Lance
概述
Features
- For high current load
- For high vibration levels
- Usable up to 130 °C (Sn-plated)
- Secondary lockable
- 3 contact points
- Compatible to MCP 1.5 - K
Accesories
-
Single wire seals:
- red
- grey
- yellow
-
Crimping pliers:
- 0.35 and 0.50 mm²
- >0.50 and 1.00 mm²
-
Crimping tool:
- 0.35 to 0.50 mm²
- >0.50 to 1.00 mm²
-
Consumables kit for the crimping tool:
- 0.35 to 0.50 mm²
- >0.50 to 1.00 mm²
- Disassembly tool
- Test probes
Technical Features
| Wire cross-sections | 0.35…1.00 mm² |
| Pitch distance | 4 mm |
| Row distance | 4 mm (3.5 mm) |
| Temperature range | -40…+130 °C (tin-plated) |
| Wire seal | single wire seal |
| Nominal voltage | 20 mV…40 V (DC) |
| Current rating | maximal 19 A (Sn) |
| Supply | terminal reels of 6,000 terminals |
1928498650
1928498690
