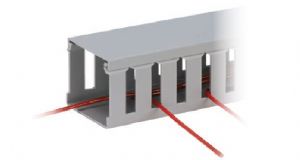

PANDUIT Panduct ® G型宽缝线槽
概述
- 窄缝/指缝式设计使侧壁的强度更高，可配合各种尺寸线缆束使用
- 材料：无铅PVC材料
- UL认可的持续使用温度：122°F (50°C)
- 阻燃性等级为UL94V-0
- 符合NFPA79-2007第13.3.1条关于阻燃材料的要求
- 配备安装孔
| Part Number | Duct Size W x H | Slot Width |
Cover
Part Number
|
||
| In. | mm | In. | mm | ||
| G.5X.5LG6 | .69x.6 | 17.5x15.2 | 0.38 | 9.7 | C.5LG6 |
| G.5X1LG6 | .69x1.06 | 17.5x26.9 | 0.31 | 7.9 | C.5LG6 |
| G.5X2LG6 | .69x2.03 | 17.5x51.6 | 0.31 | 7.9 | C.5LG6 |
| G.5X4LG6 | .69x4.10 | 17.5x104.1 | 0.31 | 7.9 | C.5LG6 |
| G.75X.75LG6 | .92x0.82 | 23.6x20.8 | 0.31 | 7.9 | C.75LG6 |
| G.75X1LG6 | .92x1.06 | 23.6x26.9 | 0.31 | 7.9 | C.75LG6 |
| G.75X1.5LG6 | .92x1.57 | 23.6x39.9 | 0.31 | 7.9 | C.75LG6 |
| G.75X2LG6 | .94x2.03 | 23.6x51.7 | 0.31 | 7.9 | C.75LG6 |
| G1X1LG6 | 1.25x1.12 | 32.0x28.4 | 0.31 | 7.9 | C1LG6 |
| G1X1.5LG6 | 1.25x1.62 | 32.0x41.1 | 0.31 | 7.9 | C1LG6 |
| G1X2LG6 | 1.25x2.12 | 32.0x53.8 | 0.31 | 7.9 | C1LG6 |
| G1X3LG6 | 1.25x3.12 | 32.0x79.2 | 0.31 | 7.9 | C1LG6 |
| G1X4LG6 | 1.25x4.10 | 32.0x104.1 | 0.31 | 7.9 | C1LG6 |
| G1.5X1LG6 | 1.75x1.12 | 44.5x28.4 | 0.31 | 7.9 | C1.5LG6 |
| G1.5X1.5LG6 | 1.75x1.62 | 44.5x41.1 | 0.31 | 7.9 | C1.5LG6 |
| G1.5X2LG6 | 1.75x2.12 | 44.5x53.8 | 0.31 | 7.9 | C1.5LG6 |
| G1.5X3LG6 | 1.75x3.12 | 44.5x79.2 | 0.31 | 7.9 | C1.5LG6 |
| G1.5X4LG6 | 1.74x4.10 | 44.5x104.1 | 0.31 | 7.9 | C1.5LG6 |
| G2X1LG6 | 2.25x1.12 | 57.2x28.4 | 0.31 | 7.9 | C2LG6 |
| G2X1.5LG6 | 2.25x1.62 | 57.2x41.1 | 0.31 | 7.9 | C2LG6 |
| G2X2LG6 | 2.25x2.12 | 57.2x53.8 | 0.31 | 7.9 | C2LG6 |
| G2X3LG6 | 2.25x3.12 | 57.2x79.2 | 0.31 | 7.9 | C2LG6 |
| G2X4LG6 | 2.25x4.10 | 57.2x104.1 | 0.31 | 7.9 | C2LG6 |
| G2X5LG6 | 2.25x5.10 | 57.2x129.5 | 0.38 | 9.7 | C2LG6 |
| G2.5X3LG6 | 2.75x3.12 | 69.9x79.2 | 0.31 | 7.9 | C2.5LG6 |
| G3X1LG6 | 3.25x1.12 | 82.6x28.4 | 0.31 | 7.9 | C3LG6 |
| G3X2LG6 | 3.25x2.12 | 82.6x53.8 | 0.31 | 7.9 | C3LG6 |
| G3X3LG6 | 3.25x3.12 | 82.6x79.2 | 0.31 | 7.9 | C3LG6 |
| G3X4LG6 | 3.25x4.10 | 82.6x104.1 | 0.31 | 7.9 | C3LG6 |
| G3X5LG6 | 3.25x5.10 | 82.6x129.5 | 0.38 | 9.7 | C3LG6 |
| G4X1.5LG6 | 4.25x1.62 | 108.0x41.1 | 0.31 | 7.9 | C4LG6 |
| G4X2LG6 | 4.25x2.12 | 108.0x53.8 | 0.31 | 7.9 | C4LG6 |
| G4X3LG6 | 4.25x3.12 | 108.0x79.2 | 0.31 | 7.9 | C4LG6 |
| G4X4LG6 | 4.25x4.10 | 108.0x104.1 | 0.31 | 7.9 | C4LG6 |
| G4X5LG6 | 4.25x5.10 | 108.0x129.5 | 0.38 | 9.7 | C4LG6 |
| G6X4LG6 | 6.23x4.15 | 158.8x105.4 | 0.31 | 7.9 | C6LG6 |
