PANDUIT 双孔连接器

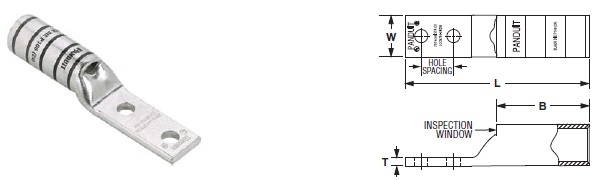

Code Conductor, Two-Hole, Standard Barrel with Window Lug

Type LCD

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCD10-10A-L*	#14 – #10 AWG STR, #12 – #10 AWG SOL	#10	0.63	0.38	0.38	0.06	1.69	—	—	—	—	7/16
LCD10-14A-L*		1/4	0.63	0.42	0.38	0.05	1.78	—	—	—	—	7/16
LCD10-14B-L*		1/4	0.75	0.42	0.38	0.05	1.91	—	—	—	—	7/16
LCD10-14D-L*		1/4	1	0.42	0.38	0.05	2.16	—	—	—	—	7/16
LCD10-38D-L*		3/8	1	0.56	0.38	0.04	2.38	—	—	—	—	7/16
LCD8-10A-L	#8 AWG	#10	0.63	0.41	0.56	0.08	1.88	Red	P21	49	21	5/8
LCD8-14A-L		1/4	0.63	0.48	0.56	0.07	1.97	Red	P21	49	21	5/8
LCD8-14B-L		1/4	0.75	0.48	0.56	0.07	2.09	Red	P21	49	21	5/8
LCD8-14D-L		1/4	1	0.48	0.56	0.07	2.34	Red	P21	49	21	5/8
LCD8-38D-L		3/8	1	0.6	0.56	0.05	2.56	Red	P21	49	21	5/8
LCD6-10A-L	#6 AWG	#10	0.63	0.46	0.81	0.08	2.15	Blue	P24	7	24	7/8
LCD6-10B-L		#10	0.75	0.46	0.81	0.08	2.27	Blue	P24	7	24	7/8
LCD6-10D-L		#10	1	0.46	0.81	0.08	2.52	Blue	P24	7	24	7/8
LCD6-14A-L		1/4	0.63	0.48	0.81	0.08	2.24	Blue	P24	7	24	7/8
LCD6-14B-L		1/4	0.75	0.48	0.81	0.08	2.36	Blue	P24	7	24	7/8
LCD6-14D-L		1/4	1	0.48	0.81	0.08	2.61	Blue	P24	7	24	7/8
LCD6-56D-L		5/16	1	0.56	0.81	0.07	2.73	Blue	P24	7	24	7/8
LCD6-38D-L		3/8	1	0.62	0.81	0.06	2.83	Blue	P24	7	24	7/8
LCD4-10A-L	#4 – #3 AWG STR, #2 AWG SOL	#10	0.63	0.55	0.81	0.09	2.17	Gray	P29	8	29	7/8
LCD4-10B-L		#10	0.75	0.55	0.81	0.09	2.29	Gray	P29	8	29	7/8
LCD4-14A-L		1/4	0.63	0.55	0.81	0.09	2.26	Gray	P29	8	29	7/8
LCD4-14B-L		1/4	0.75	0.55	0.81	0.09	2.38	Gray	P29	8	29	7/8
LCD4-14D-L		1/4	1	0.55	0.81	0.09	2.63	Gray	P29	8	29	7/8
LCD4-38D-L		3/8	1	0.62	0.81	0.08	2.85	Gray	P29	8	29	7/8
LCD2-14A-Q	#2 AWG	1/4	0.63	0.6	0.88	0.1	2.4	Brown	P33	10	33	15/16
LCD2-14B-Q		1/4	0.75	0.6	0.88	0.1	2.52	Brown	P33	10	33	15/16
LCD2-14D-Q		1/4	1	0.6	0.88	0.1	2.77	Brown	P33	10	33	15/16
LCD2-56B-Q		5/16	0.75	0.66	0.88	0.1	2.65	Brown	P33	10	33	15/16
LCD2-38D-Q		3/8	1	0.66	0.88	0.1	3	Brown	P33	10	33	15/16
LCD2-12-Q		1/2	1.75	0.75	0.88	0.08	4.14	Brown	P33	10	33	15/16
LCD1-14A-E	#1 AWG	1/4	0.63	0.7	0.88	0.11	2.42	Green	P37	11	37	15/16
LCD1-14B-E		1/4	0.75	0.7	0.88	0.11	2.54	Green	P37	11	37	15/16
LCD1-56C-E		5/16	0.88	0.7	0.88	0.11	2.79	Green	P37	11	37	15/16
LCD1-38D-E		3/8	1	0.7	0.88	0.11	2.99	Green	P37	11	37	15/16
LCD1-12-E		1/2	1.75	0.75	0.88	0.09	4.16	Green	P37	11	37	15/16
LCD1/0-14A-X	1/0 AWG	1/4	0.63	0.76	0.94	0.12	2.57	Pink	P42	12	42	1
LCD1/0-14B-X		1/4	0.75	0.76	0.94	0.12	2.7	Pink	P42	12	42	1
LCD1/0-56C-X		5/16	0.88	0.76	0.94	0.12	2.88	Pink	P42	12	42	1
LCD1/0-38D-X		3/8	1	0.76	0.94	0.12	3.08	Pink	P42	12	42	1
LCD1/0-12-X		1/2	1.75	0.8	0.94	0.12	4.25	Pink	P42	12	42	1
LCD2/0-14A-X	2/0 AWG	1/4	0.63	0.85	0.98	0.13	2.7	Black	P45	13	45	1 1/16
LCD2/0-14B-X		1/4	0.75	0.85	0.98	0.13	2.83	Black	P45	13	45	1 1/16
LCD2/0-56C-X		5/16	0.88	0.85	0.98	0.13	2.95	Black	P45	13	45	1 1/16
LCD2/0-38D-X		3/8	1	0.85	0.98	0.13	3.14	Black	P45	13	45	1 1/16
LCD2/0-12-X		1/2	1.75	0.85	0.98	0.13	4.3	Black	P45	13	45	1 1/16
LCD3/0-14B-X	3/0 AWG	1/4	0.75	0.96	1.14	0.13	3.02	Orange	P50	14	50	1 3/16
LCD3/0-56D-X		5/16	1	0.96	1.14	0.13	3.27	Orange	P50	14	50	1 3/16
LCD3/0-38D-X		3/8	1	0.96	1.14	0.13	3.33	Orange	P50	14	50	1 3/16
LCD3/0-12-X		1/2	1.75	0.96	1.14	0.13	4.49	Orange	P50	14	50	1 3/16
LCD4/0-14B-X	4/0 AWG	1/4	0.75	1.06	1.19	0.14	3.1	Purple	P54	15	54	1 1/4
LCD4/0-38D-X		3/8	1	1.06	1.19	0.14	3.44	Purple	P54	15	54	1 1/4
LCD4/0-12-X		1/2	1.75	1.06	1.19	0.14	4.58	Purple	P54	15	54	1 1/4
LCD250-38D-X	250 kcmil	3/8	1	1.17	1.25	0.14	3.54	Yellow	P62	16	62	1 5/16
LCD250-12-X		1/2	1.75	1.17	1.25	0.14	4.68	Yellow	P62	16	62	1 5/16
LCD300-38D-X	300 kcmil	3/8	1	1.19	1.44	0.16	3.74	White	P66	17	66	1 1/2
LCD300-12-X		1/2	1.75	1.19	1.44	0.16	4.92	White	P66	17	66	1 1/2
LCD350-14B-X	350 kcmil	1/4	0.75	1.28	1.44	0.17	3.3	Red	P71	18	71	1 1/2
LCD350-38D-X		3/8	1	1.28	1.44	0.17	3.78	Red	P71	18	71	1 1/2
LCD350-12E-X		1/2	1.25	1.28	1.44	0.17	4.33	Red	P71	18	71	1 1/2
LCD350-12-X		1/2	1.75	1.28	1.44	0.17	4.96	Red	P71	18	71	1 1/2
LCD400-38D-6	400 kcmil	3/8	1	1.39	1.5	0.18	3.86	Blue	P76	19	76	1 9/16
LCD400-12-6		1/2	1.75	1.39	1.5	0.18	5.04	Blue	P76	19	76	1 9/16
LCD500-14B-6	500 kcmil	1/4	0.75	1.54	1.75	0.22	3.71	Brown	P87	20	87	1 13/16
LCD500-38D-6		3/8	1	1.54	1.75	0.22	4.19	Brown	P87	20	87	1 13/16
LCD500-12E-6		1/2	1.25	1.54	1.75	0.22	4.74	Brown	P87	20	87	1 13/16
LCD500-12-6		1/2	1.75	1.54	1.75	0.22	5.37	Brown	P87	20	87	1 13/16
LCD600-38D-6	600 kcmil	3/8	1	1.7	1.75	0.26	4.24	Green	P94	22	94	1 13/16
LCD600-12-6		1/2	1.75	1.7	1.75	0.26	5.42	Green	P94	22	94	1 13/16
LCD750-38D-6	750 kcmil	3/8	1	1.89	1.88	0.26	4.71	Black	P106	24	106	1 15/16
LCD750-12-6		1/2	1.75	1.89	1.88	0.26	5.65	Black	P106	24	106	1 15/16
LCD750-58G-6		5/8	1.5	1.89	1.88	0.26	5.46	Black	P106	24	106	1 15/16
LCD1000-12-3	1000 kcmil	1/2	1.75	2.17	1.88	0.32	5.77	White	P125	27	125	1 15/16
LCD1000-12E-3		1/2	1.25	2.17	1.88	0.32	5.27	White	P125	27	125	1 15/16

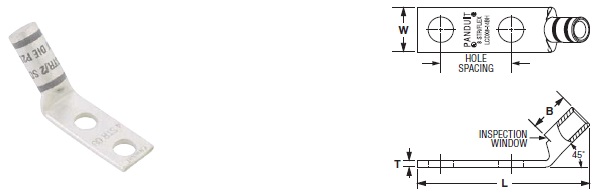

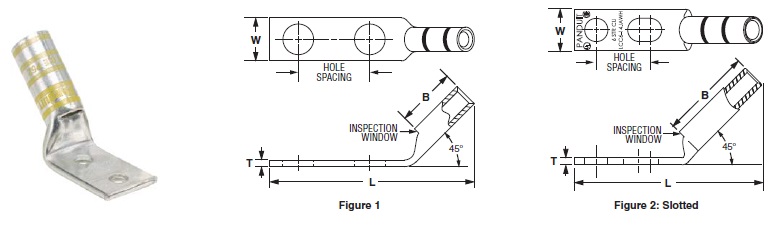

Code Conductor, Two-Hole, Standard Barrel with Window Lug, 45° Angle

Type LCD-H

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCD10-10AH-L*	#14–#10 AWG STR, #12–#10 AWG SOL	#10	0.63	0.38	0.38	0.06	1.59	—	—	—	—	7/16
LCD10-14AH-L*		1/4	0.63	0.42	0.38	0.05	1.67	—	—	—	—	7/16
LCD10-38DH-L*		3/8	1	0.56	0.38	0.04	2.28	—	—	—	—	7/16
LCD8-10AH-L	#8 AWG	#10	0.63	0.41	0.56	0.08	1.73	Red	P21	49	21	5/8
LCD8-14AH-L		1/4	0.63	0.48	0.56	0.07	1.81	Red	P21	49	21	5/8
LCD8-14BH-L		1/4	0.75	0.48	0.56	0.07	1.94	Red	P21	49	21	5/8
LCD8-14DH-L		1/4	1	0.48	0.56	0.07	2.19	Red	P21	49	21	5/8
LCD8-38DH-L		3/8	1	0.63	0.56	0.05	2.4	Red	P21	49	21	5/8
LCD6-10AH-L	#6 AWG	#10	0.63	0.46	0.81	0.08	1.92	Blue	P24	7	24	7/8
LCD6-10BH-L		#10	0.75	0.46	0.81	0.08	2.04	Blue	P24	7	24	7/8
LCD6-10DH-L		#10	1	0.46	0.81	0.08	2.29	Blue	P24	7	24	7/8
LCD6-14AH-L		1/4	0.63	0.48	0.81	0.08	2	Blue	P24	7	24	7/8
LCD6-14BH-L		1/4	0.75	0.48	0.81	0.08	2.13	Blue	P24	7	24	7/8
LCD6-14DH-L		1/4	1	0.48	0.81	0.08	2.38	Blue	P24	7	24	7/8
LCD6-56DH-L		5/16	1	0.56	0.81	0.07	2.49	Blue	P24	7	24	7/8
LCD6-38DH-L		3/8	1	0.62	0.81	0.06	2.59	Blue	P24	7	24	7/8
LCD4-10AH-L	#4–#3 AWG STR, #2 AWG SOL	#10	0.63	0.55	0.81	0.09	1.94	Gray	P29	8	29	7/8
LCD4-10BH-L		#10	0.75	0.55	0.81	0.09	2.06	Gray	P29	8	29	7/8
LCD4-14AH-L		1/4	0.63	0.55	0.81	0.09	2.03	Gray	P29	8	29	7/8
LCD4-14BH-L		1/4	0.75	0.55	0.81	0.09	2.15	Gray	P29	8	29	7/8
LCD4-14DH-L		1/4	1	0.55	0.81	0.09	2.4	Gray	P29	8	29	7/8
LCD4-38DH-L		3/8	1	0.62	0.81	0.08	2.62	Gray	P29	8	29	7/8
LCD2-14AH-Q	#2 AWG	1/4	0.63	0.6	0.88	0.1	2.11	Brown	P33	10	33	15/16
LCD2-14BH-Q		1/4	0.75	0.6	0.88	0.1	2.24	Brown	P33	10	33	15/16
LCD2-14DH-Q		1/4	1	0.6	0.88	0.1	2.49	Brown	P33	10	33	15/16
LCD2-56BH-Q		5/16	0.75	0.66	0.88	0.1	2.36	Brown	P33	10	33	15/16
LCD2-38DH-Q		3/8	1	0.66	0.88	0.1	2.71	Brown	P33	10	33	15/16
LCD2-12H-Q		1/2	1.75	0.75	0.88	0.08	3.84	Brown	P33	10	33	15/16
LCD1-14AH-E	#1 AWG	1/4	0.63	0.7	0.88	0.11	2.12	Green	P37	11	37	15/16
LCD1-14BH-E		1/4	0.75	0.7	0.88	0.11	2.25	Green	P37	11	37	15/16
LCD1-56CH-E		5/16	0.88	0.7	0.88	0.11	2.5	Green	P37	11	37	15/16
LCD1-38DH-E		3/8	1	0.7	0.88	0.11	2.7	Green	P37	11	37	15/16
LCD1-12H-E		1/2	1.75	0.75	0.88	0.09	3.87	Green	P37	11	37	15/16
LCD1/0-14AH-X	1/0 AWG	1/4	0.63	0.76	0.94	0.12	2.26	Pink	P42	12	42	1
LCD1/0-14BH-X		1/4	0.75	0.76	0.94	0.12	2.38	Pink	P42	12	42	1
LCD1/0-56CH-X		3/8	0.88	0.76	0.94	0.12	2.56	Pink	P42	12	42	1
LCD1/0-38DH-X		1/2	1	0.76	0.94	0.12	2.76	Pink	P42	12	42	1
LCD1/0-12H-X		1/2	1.75	0.8	0.94	0.12	3.93	Pink	P42	12	42	1
LCD2/0-14AH-X	2/0 AWG	1/4	0.63	0.85	0.98	0.13	2.39	Black	P45	13	45	1  1/16
LCD2/0-14BH-X		1/4	0.75	0.85	0.98	0.13	2.52	Black	P45	13	45	1  1/16
LCD2/0-56CH-X		5/16	0.88	0.85	0.98	0.13	2.64	Black	P45	13	45	1  1/16
LCD2/0-38DH-X		3/8	1	0.85	0.98	0.13	2.83	Black	P45	13	45	1  1/16
LCD2/0-12H-X		1/2	1.75	0.85	0.98	0.13	3.99	Black	P45	13	45	1  1/16
LCD3/0-14BH-X	3/0 AWG	1/4	0.75	0.96	1.14	0.13	2.65	Orange	P50	14	50	1  3/16
LCD3/0-56DH-X		5/16	1	0.96	1.14	0.13	2.9	Orange	P50	14	50	1  3/16
LCD3/0-38DH-X		3/8	1	0.96	1.14	0.13	2.96	Orange	P50	14	50	1  3/16
LCD3/0-12H-X		1/2	1.75	0.96	1.14	0.13	4.12	Orange	P50	14	50	1  3/16
LCD4/0-14BH-X	4/0 AWG	1/4	0.75	1.06	1.19	0.14	2.72	Purple	P54	15	54	1 1/4
LCD4/0-38DH-X		3/8	1	1.06	1.19	0.14	3.05	Purple	P54	15	54	1 1/4
LCD4/0-12H-X		1/2	1.75	1.06	1.19	0.14	4.19	Purple	P54	15	54	1 1/4
LCD250-38DH-X	250 kcmil	3/8	1	1.17	1.25	0.14	3.13	Yellow	P62	16	62	1  5/16
LCD250-12H-X		1/2	1.75	1.17	1.25	0.14	4.27	Yellow	P62	16	62	1  5/16
LCD300-38DH-X	300 kcmil	3/8	1	1.17	1.44	0.14	3.36	White	P66	17	66	1 1/2
LCD300-12H-X		1/2	1.75	1.17	1.44	0.14	4.54	White	P66	17	66	1 1/2
LCD350-14BH-X	350 kcmil	1/4	0.75	1.28	1.44	0.17	2.92	Red	P71	18	71	1 1/2
LCD350-38DH-X		3/8	1	1.28	1.44	0.17	3.4	Red	P71	18	71	1 1/2
LCD350-12EH-X		1/2	1.25	1.28	1.44	0.17	3.95	Red	P71	18	71	1 1/2
LCD350-12H-X		1/2	1.75	1.28	1.44	0.17	4.58	Red	P71	18	71	1 1/2
LCD400-38DH-6	400 kcmil	3/8	1	1.39	1.5	0.18	3.5	Blue	P76	19	76	1 9/16
LCD400-12H-6		1/2	1.75	1.39	1.5	0.18	4.68	Blue	P76	19	76	1 9/16
LCD500-14BH-6	500 kcmil	1/4	0.75	1.54	1.75	0.22	3.27	Brown	P87	20	87	1 13/16
LCD500-38DH-6		3/8	1	1.54	1.75	0.22	3.75	Brown	P87	20	87	1 13/16
LCD500-12EH-6		1/2	1.25	1.54	1.75	0.22	4.3	Brown	P87	20	87	1 13/16
LCD500-12H-6		1/2	1.75	1.54	1.75	0.22	4.93	Brown	P87	20	87	1 13/16
LCD600-38DH-6	600 kcmil	3/8	1	1.7	1.75	0.26	3.81	Green	P94	22	94	1 13/16
LCD600-12H-6		1/2	1.75	1.7	1.75	0.26	4.99	Green	P94	22	94	1 13/16

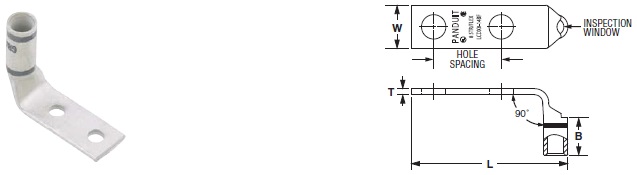

Code Conductor, Two-Hole, Standard Barrel with Window Lug, 90° Angle

Type LCD-F

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCD10-10AF-L*	#14–#10 AWG STR, #12–#10 AWG SOL	#10	0.63	0.38	0.38	0.06	1.47	—	—	—	—	7/16
LCD10-14AF-L*		1/4	0.63	0.42	0.38	0.05	1.56	—	—	—	—	7/16
LCD10-38DF-L*		3/8	1	0.56	0.38	0.04	2.16	—	—	—	—	7/16
LCD8-10AF-L	#8 AWG	#10	0.63	0.41	0.56	0.08	1.53	Red	P21	49	21	5/8
LCD8-14AF-L		1/4	0.63	0.48	0.56	0.07	1.62	Red	P21	49	21	5/8
LCD8-14BF-L		1/4	0.75	0.48	0.56	0.07	1.74	Red	P21	49	21	5/8
LCD8-14DF-L		1/4	1	0.48	0.56	0.07	1.99	Red	P21	49	21	5/8
LCD8-38DF-L		3/8	1	0.63	0.56	0.05	2.21	Red	P21	49	21	5/8
LCD6-10AF-L	#6 AWG	#10	0.63	0.46	0.81	0.08	1.57	Blue	P24	7	24	7/8
LCD6-10BF-L		#10	0.75	0.46	0.81	0.08	1.69	Blue	P24	7	24	7/8
LCD6-10DF-L		#10	1	0.46	0.81	0.08	1.94	Blue	P24	7	24	7/8
LCD6-14AF-L		1/4	0.63	0.48	0.81	0.08	1.66	Blue	P24	7	24	7/8
LCD6-14BF-L		1/4	0.75	0.48	0.81	0.08	1.78	Blue	P24	7	24	7/8
LCD6-14DF-L		1/4	1	0.48	0.81	0.08	2.03	Blue	P24	7	24	7/8
LCD6-56DF-L		5/16	1	0.56	0.81	0.07	2.15	Blue	P24	7	24	7/8
LCD6-38DF-L		3/8	1	0.62	0.81	0.06	2.25	Blue	P24	7	24	7/8
LCD4-10AF-L	#4–#3 AWG STR, #2 AWG SOL	#10	0.63	0.55	0.81	0.09	1.65	Gray	P29	8	29	7/8
LCD4-10BF-L		#10	0.75	0.55	0.81	0.09	1.78	Gray	P29	8	29	7/8
LCD4-14AF-L		1/4	0.63	0.55	0.81	0.09	1.74	Gray	P29	8	29	7/8
LCD4-14BF-L		1/4	0.75	0.55	0.81	0.09	1.87	Gray	P29	8	29	7/8
LCD4-14DF-L		1/4	1	0.55	0.81	0.09	2.12	Gray	P29	8	29	7/8
LCD4-38DF-L		3/8	1	0.62	0.81	0.08	2.34	Gray	P29	8	29	7/8
LCD2-14AF-Q	#2 AWG	1/4	0.63	0.6	0.88	0.1	1.86	Brown	P33	10	33	15/16
LCD2-14BF-Q		1/4	0.75	0.6	0.88	0.1	1.99	Brown	P33	10	33	15/16
LCD2-14DF-Q		1/4	1	0.6	0.88	0.1	2.24	Brown	P33	10	33	15/16
LCD2-56BF-Q		5/16	0.75	0.66	0.88	0.1	2.11	Brown	P33	10	33	15/16
LCD2-38DF-Q		3/8	1	0.66	0.88	0.1	2.47	Brown	P33	10	33	15/16
LCD2-12F-Q		1/2	1.75	0.75	0.88	0.08	3.61	Brown	P33	10	33	15/16
LCD1-14AF-E	#1 AWG	1/4	0.63	0.7	0.88	0.11	1.94	Green	P37	11	37	15/16
LCD1-14BF-E		1/4	0.75	0.7	0.88	0.11	2.06	Green	P37	11	37	15/16
LCD1-56CF-E		5/16	0.88	0.7	0.88	0.11	2.31	Green	P37	11	37	15/16
LCD1-38DF-E		3/8	1	0.7	0.88	0.11	2.51	Green	P37	11	37	15/16
LCD1-12F-E		1/2	1.75	0.75	0.88	0.09	3.68	Green	P37	11	37	15/16
LCD1/0-14AF-X	1/0 AWG	1/4	0.63	0.76	0.94	0.12	2.08	Pink	P42	12	42	1
LCD1/0-14BF-X		1/4	0.75	0.76	0.94	0.12	2.2	Pink	P42	12	42	1
LCD1/0-56CF-X		5/16	0.88	0.76	0.94	0.12	2.38	Pink	P42	12	42	1
LCD1/0-38DF-X		3/8	1	0.76	0.94	0.12	2.58	Pink	P42	12	42	1
LCD1/0-12F-X		1/2	1.75	0.8	0.94	0.12	3.75	Pink	P42	12	42	1
LCD2/0-14AF-X	2/0 AWG	1/4	0.63	0.85	0.98	0.13	2.22	Black	P45	13	45	1  1/16
LCD2/0-14BF-X		1/4	0.75	0.85	0.98	0.13	2.34	Black	P45	13	45	1  1/16
LCD2/0-56CF-X		5/16	0.88	0.85	0.98	0.13	2.47	Black	P45	13	45	1  1/16
LCD2/0-38DF-X		3/8	1	0.85	0.98	0.13	2.66	Black	P45	13	45	1  1/16
LCD2/0-12F-X		1/2	1.75	0.85	0.98	0.13	3.82	Black	P45	13	45	1  1/16
LCD3/0-14BF-X	3/0 AWG	1/4	0.75	0.96	1.14	0.13	2.42	Orange	P50	14	50	1  3/16
LCD3/0-56DF-X		5/16	1	0.96	1.14	0.13	2.67	Orange	P50	14	50	1  3/16
LCD3/0-38DF-X		3/8	1	0.96	1.14	0.13	2.73	Orange	P50	14	50	1  3/16
LCD3/0-12F-X		1/2	1.75	0.96	1.14	0.13	3.89	Orange	P50	14	50	1  3/16
LCD4/0-14BF-X	4/0 AWG	1/4	0.75	1.06	1.19	0.14	2.5	Purple	P54	15	54	1 1/4
LCD4/0-38DF-X		3/8	1	1.06	1.19	0.14	2.84	Purple	P54	15	54	1 1/4
LCD4/0-12F-X		1/2	1.75	1.06	1.19	0.14	3.98	Purple	P54	15	54	1 1/4
LCD250-38DF-X	250 kcmil	3/8	1	1.17	1.25	0.14	2.9	Yellow	P62	16	62	1  5/16
LCD250-12F-X		1/2	1.75	1.17	1.25	0.14	4.04	Yellow	P62	16	62	1  5/16
LCD300-38DF-X	300 kcmil	3/8	1	1.19	1.44	0.16	2.88	White	P66	17	66	1 1/2
LCD300-12F-X		1/2	1.75	1.19	1.44	0.16	4.06	White	P66	17	66	1 1/2
LCD350-14BF-X	350 kcmil	1/4	0.75	1.28	1.44	0.17	2.46	Red	P71	18	71	1 1/2
LCD350-38DF-X		3/8	1	1.28	1.44	0.17	2.94	Red	P71	18	71	1 1/2
LCD350-12EF-X		1/2	1.25	1.28	1.44	0.17	3.49	Red	P71	18	71	1 1/2
LCD350-12F-X		1/2	1.75	1.28	1.44	0.17	4.12	Red	P71	18	71	1 1/2
LCD400-38DF-6	400 kcmil	3/8	1	1.39	1.5	0.18	3.02	Blue	P76	19	76	1 9/16
LCD400-12F-6		1/2	1.75	1.39	1.5	0.18	4.2	Blue	P76	19	76	1 9/16
LCD500-14BF-6	500 kcmil	1/4	0.75	1.54	1.75	0.22	2.65	Brown	P87	20	87	1 13/16
LCD500-38DF-6		3/8	1	1.54	1.75	0.22	3.13	Brown	P87	20	87	1 13/16
LCD500-12EF-6		1/2	1.25	1.54	1.75	0.22	3.68	Brown	P87	20	87	1 13/16
LCD500-12F-6		1/2	1.75	1.54	1.75	0.22	4.31	Brown	P87	20	87	1 13/16
LCD600-38DF-6	600 kcmil	3/8	1	1.7	1.75	0.26	3.26	Green	P94	22	94	1 13/16
LCD600-12F-6		1/2	1.75	1.7	1.75	0.26	4.44	Green	P94	22	94	1 13/16

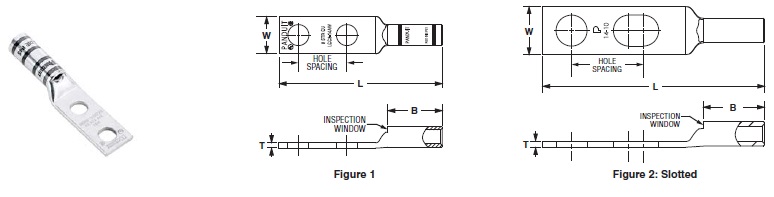

Code Conductor, Two-Hole, Standard Barrel with Window, Narrow Tongue Lug

Type LCDN

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCDN2-10B-Q	#2 AWG	#10	0.75	0.42	0.88	0.11	2.43	Brown	P33	10	33	15/16
LCDN2-14A-Q		1/4	0.63	0.42	0.88	0.12	2.4	Brown	P33	10	33	15/16
LCDN2-14B-Q		1/4	0.75	0.42	0.88	0.11	2.52	Brown	P33	10	33	15/16
LCDN2-14D-Q		1/4	1	0.42	0.88	0.11	2.77	Brown	P33	10	33	15/16
LCDN1-14B-E	#1 AWG	1/4	0.75	0.47	0.88	0.11	2.54	Green	P37	11	37	15/16
LCDN1/0-14D-X	1/0 AWG	1/4	1	0.52	0.94	0.13	2.95	Pink	P42	12	42	1
LCDN1/0-56D-X		5/16	1	0.52	0.94	0.13	3	Pink	P42	12	42	1
LCDN2/0-14A-X	2/0 AWG	1/4	0.63	0.58	0.98	0.14	2.71	Black	P45	13	45	1  1/16
LCDN2/0-14D-X		1/4	1	0.58	0.98	0.13	3.09	Black	P45	13	45	1  1/16
LCDN2/0-56A-X		5/16	0.63	0.58	0.98	0.13	2.71	Black	P45	13	45	1  1/16
LCDN2/0-56D-X		5/16	1	0.58	0.98	0.13	3.09	Black	P45	13	45	1  1/16
LCDN350-38D-X		3/8	1	0.88	1.44	0.17	3.79	Red	P71	18	71	1 1/2
LCDN500-38D-6	500 kcmil	3/8	1	1.06	1.75	0.22	4.2	Brown	P87	20	87	1  3/16
LCDN500-12D-6		1/2	1	1.06	1.75	0.22	4.63	Brown	P87	20	87	1  3/16
LCDN750-38D-6	750 kcmil	3/8	1	1.3	1.88	0.26	4.72	Black	P106	24	106	1  3/16

Code Conductor,Two-Hole, Standard Barrel with Window, Narrow Tongue Lug, 45°

Type LCDN-H

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCDN2-14AH-Q	#2 AWG	1/4	0.63	0.42	0.88	0.11	2.12	Brown	P33	10	33	15/16
LCDN2-14DH-Q	#2 AWG	1/4	1	0.42	0.88	0.11	2.49	Brown	P33	10	33	15/16
LCDN1/0-14DH-X	1/0 AWG	1/4	1	0.52	0.94	0.13	2.63	Pink	P42	12	42	1
LCDN1/0-56DH-X	1/0 AWG	5/16	1	0.52	0.94	0.13	2.7	Pink	P42	12	42	1

Code Conductor,Two-Hole, Standard Barrel with Window, Narrow Tongue Lug, 90°

Type LCDN-F

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCDN2-14AF-Q	#2 AWG	1/4	0.63	0.42	0.88	0.11	1.86	Brown	P33	10	33	15/16
LCDN2-14DF-Q	#2 AWG	1/4	1	0.42	0.88	0.11	2.24	Brown	P33	10	33	15/16
LCDN1/0-14DF-X	1/0 AWG	1/4	1	0.52	0.94	0.13	2.45	Pink	P42	12	42	1
LCDN1/0-56DF-X	1/0 AWG	5/16	1	0.52	0.94	0.13	2.51	Pink	P42	12	42	1

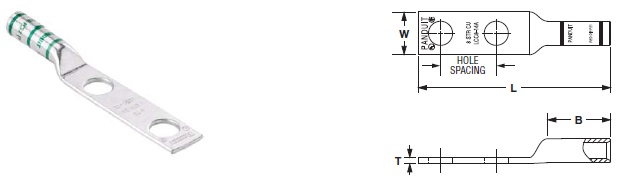

Code Conductor, Two-Hole, Long Barrel Lug

Type LCC

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCC8-10A-L	#8 AWG	#10	0.63	0.41	0.7	0.08	2.07	Red	P21	49	21	3/4
LCC8-14A-L		1/4	0.63	0.48	0.7	0.07	2.16	Red	P21	49	21	3/4
LCC8-14B-L		1/4	0.75	0.48	0.7	0.07	2.28	Red	P21	49	21	3/4
LCC8-14D-L		1/4	1	0.48	0.7	0.07	2.53	Red	P21	49	21	3/4
LCC8-38D-L		3/8	1	0.6	0.7	0.05	2.75	Red	P21	49	21	3/4
LCC6-10A-L	#6 AWG	#10	0.63	0.46	1.07	0.08	2.47	Blue	P24	7	24	1 1/8
LCC6-14A-L		1/4	0.63	0.48	1.07	0.08	2.56	Blue	P24	7	24	1 1/8
LCC6-14B-L		1/4	0.75	0.48	1.07	0.08	2.68	Blue	P24	7	24	1 1/8
LCC6-14D-L		1/4	1	0.48	1.07	0.08	2.93	Blue	P24	7	24	1 1/8
LCC6-38D-L		3/8	1	0.62	1.07	0.06	3.15	Blue	P24	7	24	1 1/8
LCC6-12-L		1/2	1.75	0.75	1.07	0.07	4.04	Blue	P24	7	24	1 1/8
LCC4-14A-L	#4–#3 AWG STR, #2 AWG SOL	1/4	0.63	0.55	1.05	0.09	2.58	Gray	P29	8	29	1 1/8
LCC4-14B-L		1/4	0.75	0.55	1.05	0.09	2.7	Gray	P29	8	29	1 1/8
LCC4-38D-L		3/8	1	0.62	1.05	0.08	3.17	Gray	P29	8	29	1 1/8
LCC4-12-L		1/2	1.75	0.75	1.05	0.07	4.09	Gray	P29	8	29	1 1/8
LCC2-14A-Q	#2 AWG	1/4	0.63	0.6	1.16	0.1	2.77	Brown	P33	10	33	1 1/4
LCC2-14B-Q		1/4	0.75	0.6	1.16	0.1	2.89	Brown	P33	10	33	1 1/4
LCC2-56B-Q		5/16	0.75	0.66	1.16	0.1	3.02	Brown	P33	10	33	1 1/4
LCC2-56C-Q		5/16	0.88	0.66	1.16	0.1	3.14	Brown	P33	10	33	1 1/4
LCC2-38D-Q		3/8	1	0.66	1.16	0.1	3.34	Brown	P33	10	33	1 1/4
LCC2-38-Q		3/8	1.75	0.66	1.16	0.1	4.09	Brown	P33	10	33	1 1/4
LCC2-12-Q		1/2	1.75	0.75	1.16	0.08	4.51	Brown	P33	10	33	1 1/4
LCC1-14A-E	#1 AWG	1/4	0.63	0.7	1.36	0.11	3	Green	P37	11	37	1 7/16
LCC1-14B-E		1/4	0.75	0.7	1.36	0.11	3.12	Green	P37	11	37	1 7/16
LCC1-56B-E		5/16	0.75	0.7	1.36	0.11	3.25	Green	P37	11	37	1 7/16
LCC1-56C-E		5/16	0.88	0.7	1.36	0.11	3.37	Green	P37	11	37	1 7/16
LCC1-38D-E		3/8	1	0.7	1.36	0.11	3.57	Green	P37	11	37	1 7/16
LCC1-12-E		1/2	1.75	0.75	1.36	0.09	4.74	Green	P37	11	37	1 7/16
LCC1/0-14A-X	1/0 AWG	1/4	0.63	0.76	1.44	0.12	3.18	Pink	P42	12	42	1 1/2
LCC1/0-14B-X		1/4	0.75	0.76	1.44	0.12	3.31	Pink	P42	12	42	1 1/2
LCC1/0-56C-X		5/16	0.88	0.76	1.44	0.12	3.49	Pink	P42	12	42	1 1/2
LCC1/0-56D-X		5/16	1	0.76	1.44	0.12	3.61	Pink	P42	12	42	1 1/2
LCC1/0-38D-X		3/8	1	0.76	1.44	0.12	3.69	Pink	P42	12	42	1 1/2
LCC1/0-12D-X		1/2	1	0.8	1.44	0.12	3.95	Pink	P42	12	42	1 1/2
LCC1/0-12-X		1/2	1.75	0.8	1.44	0.12	4.86	Pink	P42	12	42	1 1/2
LCC2/0-14A-X	2/0 AWG	1/4	0.63	0.85	1.5	0.13	3.38	Black	P45	13	45	1 9/16
LCC2/0-14B-X		1/4	0.75	0.85	1.5	0.13	3.51	Black	P45	13	45	1 9/16
LCC2/0-56D-X		5/16	1	0.85	1.5	0.13	3.76	Black	P45	13	45	1 9/16
LCC2/0-38D-X		3/8	1	0.85	1.5	0.13	3.82	Black	P45	13	45	1 9/16
LCC2/0-12D-X		1/2	1	0.85	1.5	0.13	4.07	Black	P45	13	45	1 9/16
LCC2/0-12-X		1/2	1.75	0.85	1.5	0.13	4.98	Black	P45	13	45	1 9/16
LCC3/0-14B-X	3/0 AWG	1/4	0.75	0.96	1.5	0.13	3.56	Orange	P50	14	50	1 9/16
LCC3/0-38D-X		3/8	1	0.96	1.5	0.13	3.87	Orange	P50	14	50	1 9/16
LCC3/0-12D-X		1/2	1	0.96	1.5	0.13	4.12	Orange	P50	14	50	1 9/16
LCC3/0-12-X		1/2	1.75	0.96	1.5	0.13	5.03	Orange	P50	14	50	1 9/16
LCC4/0-14B-X	4/0 AWG	1/4	0.75	1.06	1.56	0.14	3.66	Purple	P54	15	54	1 5/8
LCC4/0-56D-X		5/16	1	1.06	1.56	0.14	3.92	Purple	P54	15	54	1 5/8
LCC4/0-38D-X		3/8	1	1.06	1.56	0.14	3.99	Purple	P54	15	54	1 5/8
LCC4/0-38-X		3/8	1.75	1.06	1.56	0.14	4.74	Purple	P54	15	54	1 5/8
LCC4/0-12D-X		1/2	1	1.06	1.56	0.14	4.22	Purple	P54	15	54	1 5/8
LCC4/0-12-X		1/2	1.75	1.06	1.56	0.14	5.13	Purple	P54	15	54	1 5/8
LCC250-38D-X	250 kcmil	3/8	1	1.17	1.6	0.14	4.09	Yellow	P62	16	62	1 11/16
LCC250-12D-X		1/2	1	1.17	1.6	0.14	4.32	Yellow	P62	16	62	1 11/16
LCC250-12-X		1/2	1.75	1.17	1.6	0.14	5.23	Yellow	P62	16	62	1 11/16
LCC300-38D-X	300 kcmil	3/8	1	1.19	2.24	0.16	4.76	White	P66	17	66	2 5/16
LCC300-12-X		1/2	1.75	1.19	2.24	0.16	5.94	White	P66	17	66	2 5/16
LCC350-14B-X	350 kcmil	1/4	0.75	1.28	2.24	0.17	4.33	Red	P71	18	71	2 5/16
LCC350-38D-X		3/8	1	1.28	2.24	0.17	4.81	Red	P71	18	71	2 5/16
LCC350-12-X		1/2	1.75	1.28	2.24	0.17	5.99	Red	P71	18	71	2 5/16
LCC400-14B-6	400 kcmil	1/4	0.75	1.39	2.3	0.18	4.44	Blue	P76	19	76	2 3/8
LCC400-38D-6		3/8	1	1.39	2.3	0.18	4.92	Blue	P76	19	76	2 3/8
LCC400-12-6		1/2	1.75	1.39	2.3	0.18	6.1	Blue	P76	19	76	2 3/8
LCC500-14B-6	500 kcmil	1/4	0.75	1.54	2.5	0.22	4.7	Brown	P87	20	87	2 9/16
LCC500-38D-6		3/8	1	1.54	2.5	0.22	5.18	Brown	P87	20	87	2 9/16
LCC500-12-6		1/2	1.75	1.54	2.5	0.22	6.36	Brown	P87	20	87	2 9/16
LCC600-38D-6	600 kcmil	3/8	1	1.7	2.69	0.26	5.45	Green	P94	22	94	2 3/4
LCC600-12-6		1/2	1.75	1.7	2.69	0.26	6.63	Green	P94	22	94	2 3/4
LCC750-38D-6	750 kcmil	3/8	1	1.89	2.87	0.26	6.1	Black	P106	24	106	2 15/16
LCC750-12-6		1/2	1.75	1.89	2.87	0.26	7.04	Black	P106	24	106	2 15/16
LCC800-12-6	800 kcmil	1/2	1.75	1.95	2.94	0.29	7.13	Orange	P107	25	—	3
LCC1000-38D-3	1000 kcmil	3/8	1	2.17	3	0.32	6.35	White	P125	27	125	3 1/16
LCC1000-12-3		1/2	1.75	2.17	3	0.32	7.29	White	P125	27	125	3 1/16

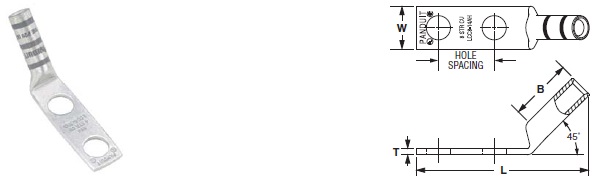

Code Conductor, Two-Hole, Long Barrel Lug, 45° Angle

Type LCC-H

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCC8-10AH-L	#8 AWG	#10	0.63	0.41	0.7	0.08	1.86	Red	P21	49	21	3/4
LCC8-14AH-L		1/4	0.63	0.48	0.7	0.07	1.94	Red	P21	49	21	3/4
LCC8-14BH-L		1/4	0.75	0.48	0.7	0.07	2.06	Red	P21	49	21	3/4
LCC8-14DH-L		1/4	1	0.48	0.7	0.07	2.31	Red	P21	49	21	3/4
LCC8-38DH-L		3/8	1	0.6	0.7	0.05	2.52	Red	P21	49	21	3/4
LCC6-10AH-L	#6 AWG	#10	0.63	0.46	1.07	0.08	2.14	Blue	P24	7	24	1 1/8
LCC6-14AH-L		1/4	0.63	0.48	1.07	0.08	2.23	Blue	P24	7	24	1 1/8
LCC6-14BH-L		1/4	0.75	0.48	1.07	0.08	2.35	Blue	P24	7	24	1 1/8
LCC6-14DH-L		1/4	1	0.48	1.07	0.08	2.6	Blue	P24	7	24	1 1/8
LCC6-38DH-L		3/8	1	0.62	1.07	0.06	2.81	Blue	P24	7	24	1 1/8
LCC4-14AH-L	#4–#3 AWG STR, #2 AWG SOL	1/4	0.63	0.55	1.05	0.09	2.26	Gray	P29	8	29	1 1/8
LCC4-14BH-L		1/4	0.75	0.55	1.05	0.09	2.38	Gray	P29	8	29	1 1/8
LCC4-38DH-L		3/8	1	0.62	1.05	0.08	2.84	Gray	P29	8	29	1 1/8
LCC2-14AH-Q	#2 AWG	1/4	0.63	0.6	1.16	0.1	2.38	Brown	P33	10	33	1 1/4
LCC2-14BH-Q		1/4	0.75	0.6	1.16	0.1	2.5	Brown	P33	10	33	1 1/4
LCC2-56BH-Q		5/16	0.75	0.66	1.16	0.1	2.62	Brown	P33	10	33	1 1/4
LCC2-56CH-Q		5/16	0.88	0.66	1.16	0.1	2.75	Brown	P33	10	33	1 1/4
LCC2-38DH-Q		3/8	1	0.66	1.16	0.1	2.95	Brown	P33	10	33	1 1/4
LCC2-38H-Q		3/8	1.75	0.66	1.16	0.1	3.7	Brown	P33	10	33	1 1/4
LCC2-12H-Q		1/2	1.75	0.75	1.16	0.08	4.1	Brown	P33	10	33	1 1/4
LCC1-14AH-E	#1 AWG	1/4	0.63	0.7	1.36	0.11	2.53	Green	P37	11	37	1 7/16
LCC1-14BH-E		1/4	0.75	0.7	1.36	0.11	2.66	Green	P37	11	37	1 7/16
LCC1-56BH-E		5/16	0.75	0.7	1.36	0.11	2.78	Green	P37	11	37	1 7/16
LCC1-56CH-E		5/16	0.88	0.7	1.36	0.11	2.91	Green	P37	11	37	1 7/16
LCC1-38DH-E		3/8	1	0.7	1.36	0.11	3.11	Green	P37	11	37	1 7/16
LCC1-12H-E		1/2	1.75	0.75	1.36	0.09	4.27	Green	P37	11	37	1 7/16
LCC1/0-14AH-X	1/0 AWG	1/4	0.63	0.76	1.44	0.12	2.69	Pink	P42	12	42	1 1/2
LCC1/0-14BH-X		1/4	0.75	0.76	1.44	0.12	2.81	Pink	P42	12	42	1 1/2
LCC1/0-56CH-X		5/16	0.88	0.76	1.44	0.12	2.99	Pink	P42	12	42	1 1/2
LCC1/0-56DH-X		5/16	1	0.76	1.44	0.12	3.12	Pink	P42	12	42	1 1/2
LCC1/0-38DH-X		3/8	1	0.76	1.44	0.12	3.19	Pink	P42	12	42	1 1/2
LCC1/0-12DH-X		1/2	1	0.8	1.44	0.12	3.46	Pink	P42	12	42	1 1/2
LCC1/0-12H-X		1/2	1.75	0.8	1.44	0.12	4.36	Pink	P42	12	42	1 1/2
LCC2/0-14AH-X	2/0 AWG	1/4	0.63	0.85	1.5	0.13	2.87	Black	P45	13	45	1 9/16
LCC2/0-14BH-X		1/4	0.75	0.85	1.5	0.13	2.99	Black	P45	13	45	1 9/16
LCC2/0-56DH-X		5/16	1	0.85	1.5	0.13	3.24	Black	P45	13	45	1 9/16
LCC2/0-38DH-X		3/8	1	0.85	1.5	0.13	3.31	Black	P45	13	45	1 9/16
LCC2/0-12DH-X		1/2	1	0.85	1.5	0.13	3.56	Black	P45	13	45	1 9/16
LCC2/0-12H-X		1/2	1.75	0.85	1.5	0.13	4.47	Black	P45	13	45	1 9/16
LCC3/0-14BH-X	3/0 AWG	1/4	0.75	0.96	1.5	0.13	3.02	Orange	P50	14	50	1 9/16
LCC3/0-38DH-X		3/8	1	0.96	1.5	0.13	3.33	Orange	P50	14	50	1 9/16
LCC3/0-12DH-X		1/2	1	0.96	1.5	0.13	3.58	Orange	P50	14	50	1 9/16
LCC3/0-12H-X		1/2	1.75	0.96	1.5	0.13	4.5	Orange	P50	14	50	1 9/16
LCC4/0-14BH-X	4/0 AWG	1/4	0.75	1.06	1.56	0.14	3.11	Purple	P54	15	54	1 5/8
LCC4/0-56DH-X		5/16	1	1.06	1.56	0.14	3.37	Purple	P54	15	54	1 5/8
LCC4/0-38DH-X		3/8	1	1.06	1.56	0.14	3.44	Purple	P54	15	54	1 5/8
LCC4/0-38H-X		3/8	1.75	1.06	1.56	0.14	4.19	Purple	P54	15	54	1 5/8
LCC4/0-12DH-X		1/2	1	1.06	1.56	0.14	3.67	Purple	P54	15	54	1 5/8
LCC4/0-12H-X		1/2	1.75	1.06	1.56	0.14	4.58	Purple	P54	15	54	1 5/8
LCC250-38DH-X	250 kcmil	3/8	1	1.17	1.61	0.14	3.51	Yellow	P62	16	62	1 11/16
LCC250-12DH-X		1/2	1	1.17	1.61	0.14	3.74	Yellow	P62	16	62	1 11/16
LCC250-12H-X		1/2	1.75	1.17	1.61	0.14	4.65	Yellow	P62	16	62	1 11/16
LCC300-38DH-X	300 kcmil	3/8	1	1.19	2.24	0.16	4.05	White	P66	17	66	2 5/16
LCC300-12H-X		1/2	1.75	1.19	2.24	0.16	5.23	White	P66	17	66	2 5/16
LCC350-14BH-X	350 kcmil	1/4	0.75	1.28	2.24	0.17	3.61	Red	P71	18	71	2 5/16
LCC350-38DH-X		3/8	1	1.28	2.24	0.17	4.09	Red	P71	18	71	2 5/16
LCC350-12H-X		1/2	1.75	1.28	2.24	0.17	5.27	Red	P71	18	71	2 5/16
LCC400-14BH-6	400 kcmil	1/4	0.75	1.39	2.3	0.18	3.7	Blue	P76	19	76	2 3/8
LCC400-38DH-6		3/8	1	1.39	2.3	0.18	4.18	Blue	P76	19	76	2 3/8
LCC400-12H-6		1/2	1.75	1.39	2.3	0.18	5.36	Blue	P76	19	76	2 3/8
LCC500-14BH-6	500 kcmil	1/4	0.75	1.54	2.5	0.22	3.91	Brown	P87	20	87	2 9/16
LCC500-38DH-6		3/8	1	1.54	2.5	0.22	4.39	Brown	P87	20	87	2 9/16
LCC500-12H-6		1/2	1.75	1.54	2.5	0.22	5.57	Brown	P87	20	87	2 9/16
LCC600-38DH-6	600 kcmil	3/8	1	1.7	2.69	0.26	4.61	Green	P94	22	94	2 3/4
LCC600-12H-6		1/2	1.75	1.7	2.69	0.26	5.79	Green	P94	22	94	2 3/4

Code Conductor, Two-Hole, Long Barrel Lug, 90° Angle

Type LCC-F

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCC8-10AF-L	#8 AWG	#10	0.63	0.41	0.7	0.08	1.53	Red	P21	49	21	3/4
LCC8-14AF-L		1/4	0.63	0.48	0.7	0.07	1.62	Red	P21	49	21	3/4
LCC8-14BF-L		1/4	0.75	0.48	0.7	0.07	1.74	Red	P21	49	21	3/4
LCC8-14DF-L		1/4	1	0.48	0.7	0.07	1.99	Red	P21	49	21	3/4
LCC8-38DF-L		3/8	1	0.6	0.7	0.05	2.21	Red	P21	49	21	3/4
LCC6-10AF-L	#6 AWG	1/4	0.63	0.46	1.07	0.08	1.57	Blue	P24	7	24	1 1/8
LCC6-14AF-L		1/4	0.63	0.48	1.07	0.08	1.66	Blue	P24	7	24	1 1/8
LCC6-14BF-L		1/4	0.75	0.48	1.07	0.08	1.78	Blue	P24	7	24	1 1/8
LCC6-14DF-L		1/4	1	0.48	1.07	0.08	2.03	Blue	P24	7	24	1 1/8
LCC6-38DF-L		3/8	1	0.62	1.07	0.05	2.25	Blue	P24	7	24	1 1/8
LCC4-14AF-L	#4–#3 AWG STR, #2 AWG SOL	1/4	0.63	0.55	1.05	0.09	1.74	Gray	P29	8	29	1 1/8
LCC4-14BF-L		1/4	0.75	0.55	1.05	0.09	1.87	Gray	P29	8	29	1 1/8
LCC4-38DF-L		3/8	1	0.62	1.05	0.08	2.34	Gray	P29	8	29	1 1/8
LCC2-14AF-Q	#2 AWG	1/4	0.63	0.6	1.16	0.1	1.86	Brown	P33	10	33	1 1/4
LCC2-14BF-Q		1/4	0.75	0.6	1.16	0.1	1.99	Brown	P33	10	33	1 1/4
LCC2-56BF-Q		5/16	0.75	0.66	1.16	0.1	2.11	Brown	P33	10	33	1 1/4
LCC2-56CF-Q		5/16	0.88	0.66	1.16	0.1	2.24	Brown	P33	10	33	1 1/4
LCC2-38DF-Q		3/8	1	0.66	1.16	0.1	2.44	Brown	P33	10	33	1 1/4
LCC2-38F-Q		3/8	1.75	0.66	1.16	0.1	3.19	Brown	P33	10	33	1 1/4
LCC2-12F-Q		1/2	1.75	0.75	1.16	0.08	3.61	Brown	P33	10	33	1 1/4
LCC1-14AF-E	#1 AWG	1/4	0.63	0.7	1.36	0.11	1.94	Green	P37	11	37	1 7/16
LCC1-14BF-E		1/4	0.75	0.7	1.36	0.11	2.06	Green	P37	11	37	1 7/16
LCC1-56BF-E		5/16	0.75	0.7	1.36	0.11	2.19	Green	P37	11	37	1 7/16
LCC1-56CF-E		5/16	0.88	0.7	1.36	0.11	2.31	Green	P37	11	37	1 7/16
LCC1-38DF-E		3/8	1	0.7	1.36	0.11	2.51	Green	P37	11	37	1 7/16
LCC1-12F-E		1/2	1.75	0.75	1.36	0.09	3.68	Green	P37	11	37	1 7/16
LCC1/0-14AF-X	1/0 AWG	1/4	0.63	0.76	1.44	0.12	2.08	Pink	P42	12	42	1 1/2
LCC1/0-14BF-X		1/4	0.75	0.76	1.44	0.12	2.2	Pink	P42	12	42	1 1/2
LCC1/0-56CF-X		5/16	0.88	0.76	1.44	0.12	2.38	Pink	P42	12	42	1 1/2
LCC1/0-56DF-X		5/16	1	0.76	1.44	0.12	2.51	Pink	P42	12	42	1 1/2
LCC1/0-38DF-X		3/8	1	0.76	1.44	0.12	2.58	Pink	P42	12	42	1 1/2
LCC1/0-12DF-X		1/2	1	0.8	1.44	0.12	2.85	Pink	P42	12	42	1 1/2
LCC1/0-12F-X		1/2	1.75	0.8	1.44	0.12	3.75	Pink	P42	12	42	1 1/2
LCC2/0-14AF-X	2/0 AWG	1/4	0.63	0.85	1.5	0.13	2.22	Black	P45	13	45	1 9/16
LCC2/0-14BF-X		1/4	0.75	0.85	1.5	0.13	2.34	Black	P45	13	45	1 9/16
LCC2/0-56DF-X		5/16	1	0.85	1.5	0.13	2.59	Black	P45	13	45	1 9/16
LCC2/0-38DF-X		3/8	1	0.85	1.5	0.13	2.66	Black	P45	13	45	1 9/16
LCC2/0-12DF-X		1/2	1	0.85	1.5	0.13	2.85	Black	P45	13	45	1 9/16
LCC2/0-12F-X		1/2	1.75	0.85	1.5	0.13	3.82	Black	P45	13	45	1 9/16
LCC3/0-14BF-X	3/0 AWG	1/4	0.75	0.96	1.5	0.13	2.42	Orange	P50	14	50	1 9/16
LCC3/0-38DF-X		3/8	1	0.96	1.5	0.13	2.73	Orange	P50	14	50	1 9/16
LCC3/0-12DF-X		1/2	1	0.96	1.5	0.13	2.98	Orange	P50	14	50	1 9/16
LCC3/0-12F-X		1/2	1.75	0.96	1.5	0.13	3.89	Orange	P50	14	50	1 9/16
LCC4/0-14BF-X	4/0 AWG	1/4	0.75	1.06	1.56	0.14	2.5	Purple	P54	15	54	1 5/8
LCC4/0-56DF-X		5/16	1	1.06	1.56	0.14	2.77	Purple	P54	15	54	1 5/8
LCC4/0-38DF-X		3/8	1	1.06	1.56	0.14	2.84	Purple	P54	15	54	1 5/8
LCC4/0-38F-X		3/8	1.75	1.06	1.56	0.14	3.59	Purple	P54	15	54	1 5/8
LCC4/0-12DF-X		1/2	1	1.06	1.56	0.14	3.07	Purple	P54	15	54	1 5/8
LCC4/0-12F-X		1/2	1.75	1.06	1.56	0.14	3.98	Purple	P54	15	54	1 5/8
LCC250-38DF-X	250 kcmil	3/8	1	1.17	1.61	0.14	2.9	Yellow	P62	16	62	1 11/16
LCC250-12DF-X		1/2	1	1.17	1.61	0.14	3.13	Yellow	P62	16	62	1 11/16
LCC250-12F-X		1/2	1.75	1.17	1.61	0.14	4.04	Yellow	P62	16	62	1 11/16
LCC300-38DF-X	300 kcmil	3/8	1	1.19	2.24	0.16	2.88	White	P66	17	66	2 5/16
LCC300-12F-X		1/2	1.75	1.19	2.24	0.16	4.06	White	P66	17	66	2 5/16
LCC350-14BF-X	350 kcmil	1/4	0.75	1.28	2.24	0.17	2.46	Red	P71	18	71	2 5/16
LCC350-38DF-X		3/8	1	1.28	2.24	0.17	2.94	Red	P71	18	71	2 5/16
LCC350-12F-X		1/2	1.75	1.28	2.24	0.17	4.12	Red	P71	18	71	2 5/16
LCC400-14BF-6	400 kcmil	1/4	0.75	1.39	2.3	0.18	2.54	Blue	P76	19	76	2 3/8
LCC400-38DF-6		3/8	1	1.39	2.3	0.18	3.02	Blue	P76	19	76	2 3/8
LCC400-12F-6		1/2	1.75	1.39	2.3	0.18	4.2	Blue	P76	19	76	2 3/8
LCC500-14BF-6	500 kcmil	1/4	0.75	1.54	2.5	0.22	2.65	Brown	P87	20	87	2 9/16
LCC500-38DF-6		3/8	1	1.54	2.5	0.22	3.13	Brown	P87	20	87	2 9/16
LCC500-12F-6		1/2	1.75	1.54	2.5	0.22	4.31	Brown	P87	20	87	2 9/16
LCC600-38DF-6	600 kcmil	3/8	1	1.7	2.69	0.26	3.26	Green	P94	22	94	2 3/4
LCC600-12F-6		1/2	1.75	1.7	2.69	0.26	4.44	Green	P94	22	94	2 3/4

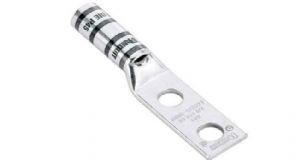

Code Conductor, Two-Hole, Long Barrel with Window Lug

Type LCC-W

Part	Figure No.	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCC10-14JAW-L*	2	#14-#10 AWG STR, #12–#10 AWG SOL	1/4	0.50–0.63	0.42	0.53	0.05	1.93	—	—	—	—	9/16
LCC10-14AW-L*	1		1/4	0.63	0.42	0.53	0.05	1.93	—	—	—	—	9/16
LCC10-14BW-L*	1		1/4	0.75	0.42	0.53	0.05	2.06	—	—	—	—	9/16
LCC8-10AW-L	1	#8 AWG	#10	0.63	0.41	0.7	0.08	2.01	Red	P21	49	21	3/4
LCC8-10BW-L	1		#10	0.75	0.41	0.7	0.08	2.14	Red	P21	49	21	3/4
LCC8-10ABW-L	2		#10	0.63–0.75	0.41	0.7	0.08	2.14	Red	P21	49	21	3/4
LCC8-14AW-L	1		1/4	0.63	0.48	0.7	0.07	2.1	Red	P21	49	21	3/4
LCC8-14BW-L	1		1/4	0.75	0.48	0.7	0.07	2.23	Red	P21	49	21	3/4
LCC8-14ABW-L	2		1/4	0.63–0.75	0.48	0.7	0.07	2.23	Red	P21	49	21	3/4
LCC8-14DW-L	1		1/4	1	0.48	0.7	0.07	2.48	Red	P21	49	21	3/4
LCC8-38DW-L	1		3/8	1	0.6	0.7	0.05	2.7	Red	P21	49	21	3/4
LCC6-10AW-L	1	#6 AWG	#10	0.63	0.46	1.07	0.08	2.4	Blue	P24	7	24	1 1/8
LCC6-10BW-L	1		#10	0.75	0.46	1.07	0.08	2.52	Blue	P24	7	24	1 1/8
LCC6-10ABW-L	2		#10	0.63–0.75	0.46	1.07	0.08	2.52	Blue	P24	7	24	1 1/8
LCC6-14JW-L	1		1/4	0.5	0.48	1.07	0.08	2.36	Blue	P24	7	24	1 1/8
LCC6-14AW-L	1		1/4	0.63	0.48	1.07	0.08	2.49	Blue	P24	7	24	1 1/8
LCC6-14JAW-L	2		1/4	0.50–0.63	0.48	1.07	0.08	2.49	Blue	P24	7	24	1 1/8
LCC6-14BW-L	1		1/4	0.75	0.48	1.07	0.08	2.61	Blue	P24	7	24	1 1/8
LCC6-14DW-L	1		1/4	1	0.48	1.07	0.08	2.86	Blue	P24	7	24	1 1/8
LCC6-14BDW-L	2		1/4	0.75–1.00	0.48	1.07	0.08	2.86	Blue	P24	7	24	1 1/8
LCC6-14EW-L	1		1/4	1.25	0.48	1.07	0.08	3.11	Blue	P24	7	24	1 1/8
LCC6-14W-L	1		1/4	1.75	0.48	1.07	0.08	3.61	Blue	P24	7	24	1 1/8
LCC6-56BW-L	1		5/16	0.75	0.56	1.07	0.07	2.73	Blue	P24	7	24	1 1/8
LCC6-38BW-L	1		3/8	0.75	0.62	1.07	0.06	2.83	Blue	P24	7	24	1 1/8
LCC6-38CW-L	1		3/8	0.88	0.62	1.07	0.06	2.96	Blue	P24	7	24	1 1/8
LCC6-38DW-L	1		3/8	1	0.62	1.07	0.06	3.08	Blue	P24	7	24	1 1/8
LCC6-38BDW-L	2		3/8	0.75–1.00	0.62	1.07	0.06	3.08	Blue	P24	7	24	1 1/8
LCC6-12W-L	1		1/2	1.75	0.75	1.07	0.07	3.97	Blue	P24	7	24	1 1/8
LCC4-10AW-L	1	#4–#3 AWG STR #2 AWG SOL	#10	0.63	0.55	1.05	0.09	2.4	Gray	P29	8	29	1 1/8
LCC4-10BW-L	1		#10	0.75	0.55	1.05	0.09	2.53	Gray	P29	8	29	1 1/8
LCC4-14AW-L	1		1/4	0.63	0.55	1.05	0.09	2.5	Gray	P29	8	29	1 1/8
LCC4-14BW-L	1		1/4	0.75	0.55	1.05	0.09	2.63	Gray	P29	8	29	1 1/8
LCC4-14DW-L	1		1/4	1	0.55	1.05	0.09	2.63	Gray	P29	8	29	1 1/8
LCC4-14ADW-L	2		1/4	0.63–1.00	0.55	1.05	0.09	2.87	Gray	P29	8	29	1 1/8
LCC4-38DW-L	1		3/8	1	0.62	1.05	0.08	3.09	Gray	P29	8	29	1 1/8
LCC4-12W-L	1		1/2	1.75	0.75	1.05	0.07	4.01	Gray	P29	8	29	1 1/8
LCC2-10AW-Q	1	#2 AWG	#10	0.63	0.6	1.16	0.1	2.57	Brown	P33	10	33	1 1/4
LCC2-10BW-Q	1		#10	0.75	0.6	1.16	0.1	2.69	Brown	P33	10	33	1 1/4
LCC2-14AW-Q	1		1/4	0.63	0.6	1.16	0.1	2.67	Brown	P33	10	33	1 1/4
LCC2-14BW-Q	1		1/4	0.75	0.6	1.16	0.1	2.79	Brown	P33	10	33	1 1/4
LCC2-14DW-Q	1		1/4	1	0.6	1.16	0.1	3.04	Brown	P33	10	33	1 1/4
LCC2-56BW-Q	1		5/16	0.75	0.66	1.16	0.1	2.92	Brown	P33	10	33	1 1/4
LCC2-56CW-Q	1		5/16	0.88	0.66	1.16	0.1	3.04	Brown	P33	10	33	1 1/4
LCC2-38BW-Q	1		3/8	0.75	0.66	1.16	0.1	2.99	Brown	P33	10	33	1 1/4
LCC2-38CW-Q	1		3/8	0.88	0.66	1.16	0.1	3.12	Brown	P33	10	33	1 1/4
LCC2-38DW-Q	1		3/8	1	0.66	1.16	0.1	3.24	Brown	P33	10	33	1 1/4
LCC2-38W-Q	1		3/8	1.75	0.66	1.16	0.1	3.99	Brown	P33	10	33	1 1/4
LCC2-12W-Q	1		1/2	1.75	0.75	1.16	0.08	4.41	Brown	P33	10	33	1 1/4
LCC1-14AW-E	1	#1 AWG	1/4	0.63	0.7	1.36	0.11	2.89	Green	P37	11	37	1 7/16
LCC1-14BW-E	1		1/4	0.75	0.7	1.36	0.11	3.01	Green	P37	11	37	1 7/16
LCC1-56BW-E	1		5/16	0.75	0.7	1.36	0.11	3.14	Green	P37	11	37	1 7/16
LCC1-56CW-E	1		5/16	0.88	0.7	1.36	0.11	3.26	Green	P37	11	37	1 7/16
LCC1-38DW-E	1		3/8	1	0.7	1.36	0.11	3.46	Green	P37	11	37	1 7/16
LCC1-12W-E	1		1/2	1.75	0.75	1.36	0.09	4.63	Green	P37	11	37	1 7/16
LCC1/0-14AW-X	1	1/0 AWG	1/4	0.63	0.76	1.44	0.12	3.07	Pink	P42	12	42	1 1/2
LCC1/0-14BW-X	1		1/4	0.75	0.76	1.44	0.12	3.19	Pink	P42	12	42	1 1/2
LCC1/0-14DW-X	1		1/4	1	0.76	1.44	0.12	3.44	Pink	P42	12	42	1 1/2
LCC1/0-38DW-X	1		3/8	1	0.76	1.44	0.12	3.57	Pink	P42	12	42	1 1/2
LCC1/0-38W-X	1		3/8	1.75	0.76	1.44	0.12	4.32	Pink	P42	12	42	1 1/2
LCC1/0-12DW-X	1		1/2	1	0.8	1.44	0.12	3.84	Pink	P42	12	42	1 1/2
LCC1/0-12W-X	1		1/2	1.75	0.8	1.44	0.12	4.74	Pink	P42	12	42	1 1/2
LCC2/0-14AW-X	1	2/0 AWG	1/4	0.63	0.85	1.5	0.13	3.23	Black	P45	13	45	1 9/16
LCC2/0-14BW-X	1		1/4	0.75	0.85	1.5	0.13	3.36	Black	P45	13	45	1 9/16
LCC2/0-56DW-X	1		5/16	1	0.85	1.5	0.13	3.61	Black	P45	13	45	1 9/16
LCC2/0-38DW-X	1		3/8	1	0.85	1.5	0.13	3.67	Black	P45	13	45	1 9/16
LCC2/0-12DW-X	1		1/2	1	0.85	1.5	0.13	3.92	Black	P45	13	45	1 9/16
LCC2/0-12W-X	1		1/2	1.75	0.85	1.5	0.13	4.83	Black	P45	13	45	1 9/16
LCC3/0-14BW-X	1	3/0 AWG	1/4	0.75	0.96	1.5	0.13	3.39	Orange	P50	14	50	1 9/16
LCC3/0-56DW-X	1		5/16	1	0.96	1.5	0.13	3.64	Orange	P50	14	50	1 9/16
LCC3/0-38DW-X	1		3/8	1	0.96	1.5	0.13	3.7	Orange	P50	14	50	1 9/16
LCC3/0-12DW-X	1		1/2	1	0.96	1.5	0.13	3.95	Orange	P50	14	50	1 9/16
LCC3/0-12W-X	1		1/2	1.75	0.96	1.5	0.13	4.87	Orange	P50	14	50	1 9/16
LCC4/0-14AW-X	1	4/0 AWG	1/4	0.63	1.06	1.56	0.14	3.35	Purple	P54	15	54	1 5/8
LCC4/0-14BW-X	1		1/4	0.75	1.06	1.56	0.14	3.48	Purple	P54	15	54	1 5/8
LCC4/0-56DW-X	1		5/16	1	1.06	1.56	0.14	3.74	Purple	P54	15	54	1 5/8
LCC4/0-38DW-X	1		3/8	1	1.06	1.56	0.14	3.81	Purple	P54	15	54	1 5/8
LCC4/0-38W-X	1		3/8	1.75	1.06	1.56	0.14	4.56	Purple	P54	15	54	1 5/8
LCC4/0-12DW-X	1		1/2	1	1.06	1.56	0.14	4.04	Purple	P54	15	54	1 5/8
LCC4/0-12W-X	1		1/2	1.75	1.06	1.56	0.14	4.95	Purple	P54	15	54	1 5/8
LCC250-56DW-X	1	250 kcmil	5/16	1	1.17	1.61	0.14	3.82	Yellow	P62	16	62	1 11/16
LCC250-38DW-X	1		3/8	1	1.17	1.61	0.14	3.89	Yellow	P62	16	62	1 11/16
LCC250-12DW-X	1		1/2	1	1.17	1.61	0.14	4.12	Yellow	P62	16	62	1 11/16
LCC250-12W-X	1		1/2	1.75	1.17	1.61	0.14	5.03	Yellow	P62	16	62	1 11/16
LCC300-38DW-X	1	300 kcmil	3/8	1	1.19	2.24	0.16	4.54	White	P66	17	66	2 5/16
LCC300-12W-X	1		1/2	1.75	1.19	2.24	0.16	5.72	White	P66	17	66	2 5/16
LCC350-14BW-X	1	350 kcmil	1/4	0.75	1.28	2.24	0.17	4.1	Red	P71	18	71	2 5/16
LCC350-38DW-X	1		3/8	1	1.28	2.24	0.17	4.58	Red	P71	18	71	2 5/16
LCC350-12W-X	1		1/2	1.75	1.28	2.24	0.17	5.76	Red	P71	18	71	2 5/16
LCC400-14BW-6	1	400 kcmil	1/4	0.75	1.39	2.3	0.18	4.18	Blue	P76	19	76	2 3/8
LCC400-38DW-6	1		3/8	1	1.39	2.3	0.18	4.66	Blue	P76	19	76	2 3/8
LCC400-12W-6	1		1/2	1.75	1.28	2.3	0.17	5.84	Blue	P76	19	76	2 3/8
LCC500-14BW-6	1	500 kcmil	1/4	0.75	1.54	2.5	0.22	4.46	Brown	P87	20	87	2 9/16
LCC500-38DW-6	1		3/8	1	1.54	2.5	0.22	4.94	Brown	P87	20	87	2 9/16
LCC500-12W-6	1		1/2	1.75	1.54	2.5	0.22	6.12	Brown	P87	20	87	2 9/16
LCC600-38DW-6	1	600 kcmil	3/8	1	1.7	2.69	0.26	5.18	Green	P94	22	94	2 3/4
LCC600-12W-6	1		1/2	1.75	1.7	2.69	0.26	6.36	Green	P94	22	94	2 3/4
LCC750-38DW-6	1	750 kcmil	3/8	1	1.89	2.88	0.26	5.71	Black	P106	24	106	2 15/16
LCC750-12W-6	1		1/2	1.75	1.89	2.88	0.26	6.65	Black	P106	24	106	2 15/16
LCC800-12W-6	1	800 kcmil	1/2	1.75	1.95	2.94	0.3	6.74	Orange	P107	25	107	3
LCC1000-38DW-3	1	1000 kcmil	3/8	1	2.17	3	0.32	5.95	White	P125	27	125	3 1/16
LCC1000-12W-3	1		1/2	1.75	2.17	3	0.32	6.89	White	P125	27	125	3 1/16

Code Conductor, Two-Hole, Long Barrel with Window Lug, 45° Angle

Type LCC-WH

Part	Figure No.	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCC10-14JAWH-L*	2	#14-#10 AWG STR, #12–#10 AWG SOL	1/4	0.50–0.63	0.42	0.53	0.05	1.78	—	—	—	—	9/16
LCC10-14AWH-L*	1		1/4	0.63	0.42	0.53	0.05	1.78	—	—	—	—	9/16
LCC10-14BWH-L*	1		1/4	0.75	0.42	0.53	0.05	1.9	—	—	—	—	9/16
LCC8-10AWH-L	1	#8 AWG	#10	0.63	0.41	0.7	0.08	1.82	Red	P21	49	21	3/4
LCC8-10BWH-L	1		#10	0.75	0.41	0.7	0.08	1.95	Red	P21	49	21	3/4
LCC8-14AWH-L	2		1/4	0.63	0.48	0.7	0.07	1.91	Red	P21	49	21	3/4
LCC8-14BWH-L	1		1/4	0.75	0.48	0.7	0.07	2.03	Red	P21	49	21	3/4
LCC8-14DWH-L	1		1/4	1	0.48	0.7	0.07	2.28	Red	P21	49	21	3/4
LCC8-38DWH-L	1		3/8	1	0.6	0.7	0.05	2.49	Red	P21	49	21	3/4
LCC6-10AWH-L	1	#6 AWG	#10	0.63	0.46	1.07	0.08	2.09	Blue	P24	7	24	1 1/8
LCC6-10BWH-L	1		#10	0.75	0.46	1.07	0.08	2.22	Blue	P24	7	24	1 1/8
LCC6-14JWH-L	1		1/4	0.5	0.48	1.07	0.08	2.06	Blue	P24	7	24	1 1/8
LCC6-14AWH-L	1		1/4	0.63	0.48	1.07	0.08	2.18	Blue	P24	7	24	1 1/8
LCC6-14JAWH-L	2		1/4	0.50–0.63	0.48	1.07	0.08	2.08	Blue	P24	7	24	1 1/8
LCC6-14BWH-L	1		1/4	0.75	0.48	1.07	0.08	2.31	Blue	P24	7	24	1 1/8
LCC6-14DWH-L	1		1/4	1	0.48	1.07	0.08	2.56	Blue	P24	7	24	1 1/8
LCC6-14EWH-L	1		1/4	1.25	0.48	1.07	0.08	2.81	Blue	P24	7	24	1 1/8
LCC6-56BWH-L	1		5/16	0.75	0.56	1.07	0.07	2.42	Blue	P24	7	24	1 1/8
LCC6-38BWH-L	1		3/8	0.75	0.62	1.07	0.06	2.52	Blue	P24	7	24	1 1/8
LCC6-38CWH-L	1		3/8	0.88	0.62	1.07	0.06	2.64	Blue	P24	7	24	1 1/8
LCC6-38DWH-L	1		3/8	1	0.62	1.07	0.06	2.77	Blue	P24	7	24	1 1/8
LCC4-10AWH-L	1	#4–#3 AWG STR #2 AWG SOL	#10	0.63	0.55	1.05	0.09	2.11	Gray	P29	8	29	1 1/8
LCC4-10BWH-L	1		#10	0.75	0.55	1.05	0.09	2.23	Gray	P29	8	29	1 1/8
LCC4-14AWH-L	1		1/4	0.63	0.55	1.05	0.09	2.2	Gray	P29	8	29	1 1/8
LCC4-14BWH-L	1		1/4	0.75	0.55	1.05	0.09	2.32	Gray	P29	8	29	1 1/8
LCC4-38DWH-L	1		3/8	1	0.62	1.05	0.08	2.79	Gray	P29	8	29	1 1/8
LCC2-10AWH-Q	1	#2 AWG	#10	0.63	0.6	1.16	0.1	2.21	Brown	P33	10	33	1 1/4
LCC2-10BWH-Q	1		#10	0.75	0.6	1.16	0.1	2.33	Brown	P33	10	33	1 1/4
LCC2-14AWH-Q	1		1/4	0.63	0.6	1.16	0.1	2.31	Brown	P33	10	33	1 1/4
LCC2-14BWH-Q	1		1/4	0.75	0.6	1.16	0.1	2.43	Brown	P33	10	33	1 1/4
LCC2-14DWH-Q	1		1/4	1	0.6	1.16	0.1	2.68	Brown	P33	10	33	1 1/4
LCC2-56BWH-Q	1		5/16	0.75	0.66	1.16	0.1	2.55	Brown	P33	10	33	1 1/4
LCC2-56CWH-Q	1		5/16	0.88	0.66	1.16	0.1	2.68	Brown	P33	10	33	1 1/4
LCC2-38BWH-Q	1		3/8	0.75	0.66	1.16	0.1	2.63	Brown	P33	10	33	1 1/4
LCC2-38CWH-Q	1		3/8	0.88	0.66	1.16	0.1	2.75	Brown	P33	10	33	1 1/4
LCC2-38DWH-Q	1		3/8	1	0.66	1.16	0.1	2.88	Brown	P33	10	33	1 1/4
LCC2-38WH-Q	1		3/8	1.75	0.66	1.16	0.1	3.63	Brown	P33	10	33	1 1/4
LCC2-12WH-Q	1		1/2	1.75	0.75	1.16	0.08	4.03	Brown	P33	10	33	1 1/4
LCC1-14AWH-E	1	#1 AWG	1/4	0.63	0.7	1.36	0.11	2.46	Green	P37	11	37	1 7/16
LCC1-14BWH-E	1		1/4	0.75	0.7	1.36	0.11	2.58	Green	P37	11	37	1 7/16
LCC1-56BWH-E	1		5/16	0.75	0.7	1.36	0.11	2.71	Green	P37	11	37	1 7/16
LCC1-56CWH-E	1		5/16	0.88	0.7	1.36	0.11	2.83	Green	P37	11	37	1 7/16
LCC1-38DWH-E	1		3/8	1	0.7	1.36	0.11	3.04	Green	P37	11	37	1 7/16
LCC1-12WH-E	1		1/2	1.75	0.75	1.36	0.09	4.2	Green	P37	11	37	1 7/16
LCC1/0-14AWH-X	1	1/0 AWG	1/4	0.63	0.76	1.44	0.12	2.61	Pink	P42	12	42	1 1/2
LCC1/0-14BWH-X	1		1/4	0.75	0.76	1.44	0.12	2.73	Pink	P42	12	42	1 1/2
LCC1/0-14DWH-X	1		1/4	1	0.76	1.44	0.12	2.98	Pink	P42	12	42	1 1/2
LCC1/0-38DWH-X	1		3/8	1	0.76	1.44	0.12	3.11	Pink	P42	12	42	1 1/2
LCC1/0-38WH-X	1		3/8	1.75	0.76	1.44	0.12	3.86	Pink	P42	12	42	1 1/2
LCC1/0-12DWH-X	1		1/2	1	0.8	1.44	0.12	3.37	Pink	P42	12	42	1 1/2
LCC1/0-12WH-X	1		1/2	1.75	0.8	1.44	0.12	4.28	Pink	P42	12	42	1 1/2
LCC2/0-14AWH-X	1	2/0 AWG	1/4	0.63	0.85	1.5	0.13	2.76	Black	P45	13	45	1 9/16
LCC2/0-14BWH-X	1		1/4	0.75	0.85	1.5	0.13	2.88	Black	P45	13	45	1 9/16
LCC2/0-56DWH-X	1		5/16	1	0.85	1.5	0.13	3.13	Black	P45	13	45	1 9/16
LCC2/0-38DWH-X	1		3/8	1	0.85	1.5	0.13	3.2	Black	P45	13	45	1 9/16
LCC2/0-12DWH-X	1		1/2	1	0.85	1.5	0.13	3.45	Black	P45	13	45	1 9/16
LCC2/0-12WH-X	1		1/2	1.75	0.85	1.5	0.13	4.36	Black	P45	13	45	1 9/16
LCC3/0-14BWH-X	1	3/0 AWG	1/4	0.75	0.96	1.5	0.13	2.91	Orange	P50	14	50	1 9/16
LCC3/0-56DWH-X	1		5/16	1	0.96	1.5	0.13	3.16	Orange	P50	14	50	1 9/16
LCC3/0-38DWH-X	1		3/8	1	0.96	1.5	0.13	3.22	Orange	P50	14	50	1 9/16
LCC3/0-12DWH-X	1		1/2	1	0.96	1.5	0.13	3.47	Orange	P50	14	50	1 9/16
LCC3/0-12WH-X	1		1/2	1.75	0.96	1.5	0.13	4.38	Orange	P50	14	50	1 9/16
LCC4/0-14AWH-X	1	4/0 AWG	1/4	0.63	1.06	1.56	0.14	2.85	Purple	P54	15	54	1 5/8
LCC4/0-14BWH-X	1		1/4	0.75	1.06	1.56	0.14	2.98	Purple	P54	15	54	1 5/8
LCC4/0-56DWH-X	1		5/16	1	1.06	1.56	0.14	3.24	Purple	P54	15	54	1 5/8
LCC4/0-38DWH-X	1		3/8	1	1.06	1.56	0.14	3.31	Purple	P54	15	54	1 5/8
LCC4/0-38WH-X	1		3/8	1.75	1.06	1.56	0.14	4.06	Purple	P54	15	54	1 5/8
LCC4/0-12DWH-X	1		1/2	1	1.06	1.56	0.14	3.54	Purple	P54	15	54	1 5/8
LCC4/0-12WH-X	1		1/2	1.75	1.06	1.56	0.14	4.45	Purple	P54	15	54	1 5/8
LCC250-56DWH-X	1	250 kcmil	5/16	1	1.17	1.61	0.14	3.31	Yellow	P62	16	62	1 11/16
LCC250-38DWH-X	1		3/8	1	1.17	1.61	0.14	3.38	Yellow	P62	16	62	1 11/16
LCC250-12DWH-X	1		1/2	1	1.17	1.61	0.14	3.61	Yellow	P62	16	62	1 11/16
LCC250-12WH-X	1		1/2	1.75	1.17	1.61	0.14	4.52	Yellow	P62	16	62	1 11/16
LCC300-38DWH-X	1	300 kcmil	3/8	1	1.19	2.24	0.16	3.93	White	P66	17	66	2 5/16
LCC300-12WH-X	1		1/2	1.75	1.19	2.24	0.16	5.11	White	P66	17	66	2 5/16
LCC350-14BWH-X	1	350 kcmil	1/4	0.75	1.28	2.24	0.17	3.48	Red	P71	18	71	2 5/16
LCC350-38DWH-X	1		3/8	1	1.28	2.24	0.17	3.96	Red	P71	18	71	2 5/16
LCC350-12WH-X	1		1/2	1.75	1.28	2.24	0.17	5.14	Red	P71	18	71	2 5/16
LCC400-14BWH-6	1	400 kcmil	1/4	0.75	1.39	2.3	0.18	3.59	Blue	P76	19	76	2 3/8
LCC400-38DWH-6	1		3/8	1	1.39	2.3	0.18	4.07	Blue	P76	19	76	2 3/8
LCC400-12WH-6	1		1/2	1.75	1.28	2.3	0.17	5.24	Blue	P76	19	76	2 3/8
LCC500-14BWH-6	1	500 kcmil	1/4	0.75	1.54	2.5	0.22	3.8	Brown	P87	20	87	2 9/16
LCC500-38DWH-6	1		3/8	1	1.54	2.5	0.22	4.29	Brown	P87	20	87	2 9/16
LCC500-12WH-6	1		1/2	1.75	1.54	2.5	0.22	5.46	Brown	P87	20	87	2 9/16
LCC600-38DWH-6	1	600 kcmil	3/8	1	1.7	2.69	0.26	4.47	Green	P94	22	94	2 3/4
LCC600-12WH-6	1		1/2	1.75	1.7	2.69	0.26	5.65	Green	P94	22	94	2 3/4

Code Conductor, Two-Hole, Long Barrel with Window Lug, 90° Angle

Type LCC-WF

Part	Figure No.	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCC10-14JAWF-L*	2	#14-#10 AWG STR, #12–#10 AWG SOL	1/4	0.50–0.63	0.42	0.53	0.05	1.56	—	—	—	—	9/16
LCC10-14AWF-L*	1		1/4	0.63	0.42	0.53	0.05	1.56	—	—	—	—	9/16
LCC10-14BWF-L*	1		1/4	0.75	0.42	0.53	0.05	1.69	—	—	—	—	9/16
LCC8-10AWF-L	1	#8 AWG	#10	0.63	0.41	0.7	0.08	1.53	Red	P21	49	21	3/4
LCC8-10BWF-L	1		#10	0.75	0.41	0.7	0.08	1.65	Red	P21	49	21	3/4
LCC8-14AWF-L	1		1/4	0.63	0.48	0.7	0.07	1.61	Red	P21	49	21	3/4
LCC8-14BWF-L	1		1/4	0.75	0.48	0.7	0.07	1.74	Red	P21	49	21	3/4
LCC8-14DWF-L	1		1/4	1	0.48	0.7	0.07	1.99	Red	P21	49	21	3/4
LCC8-38DWF-L	1		3/8	1	0.6	0.7	0.05	2.21	Red	P21	49	21	3/4
LCC6-10AWF-L	1	#6 AWG	#10	0.63	0.46	1.07	0.08	1.57	Blue	P24	7	24	1 1/8
LCC6-10BWF-L	1		#10	0.75	0.46	1.07	0.08	1.69	Blue	P24	7	24	1 1/8
LCC6-14JWF-L	1		1/4	0.5	0.48	1.07	0.08	1.53	Blue	P24	7	24	1 1/8
LCC6-14AWF-L	1		1/4	0.63	0.48	1.07	0.08	1.66	Blue	P24	7	24	1 1/8
LCC6-14JAWF-L	2		1/4	0.50–0.63	0.48	1.07	0.08	1.66	Blue	P24	7	24	1 1/8
LCC6-14BWF-L	1		1/4	0.75	0.48	1.07	0.08	1.78	Blue	P24	7	24	1 1/8
LCC6-14DWF-L	1		1/4	1	0.48	1.07	0.08	2.03	Blue	P24	7	24	1 1/8
LCC6-14EWF-L	1		1/4	1.25	0.48	1.07	0.08	2.28	Blue	P24	7	24	1 1/8
LCC6-56BWF-L	1		5/16	0.75	0.56	1.07	0.07	1.9	Blue	P24	7	24	1 1/8
LCC6-38BWF-L	1		3/8	0.75	0.62	1.07	0.06	2	Blue	P24	7	24	1 1/8
LCC6-38CWF-L	1		3/8	0.88	0.62	1.07	0.06	2.13	Blue	P24	7	24	1 1/8
LCC6-38DWF-L	1		3/8	1	0.62	1.07	0.06	2.25	Blue	P24	7	24	1 1/8
LCC4-10AWF-L	1	#4–#3 AWG STR #2 AWG SOL	#10	0.63	0.55	1.05	0.09	1.65	Gray	P29	8	29	1 1/8
LCC4-10BWF-L	1		#10	0.75	0.55	1.05	0.09	1.78	Gray	P29	8	29	1 1/8
LCC4-14AWF-L	1		1/4	0.63	0.55	1.05	0.09	1.74	Gray	P29	8	29	1 1/8
LCC4-14BWF-L	1		1/4	0.75	0.55	1.05	0.09	1.87	Gray	P29	8	29	1 1/8
LCC4-38DWF-L	1		3/8	1	0.62	1.05	0.08	2.34	Gray	P29	8	29	1 1/8
LCC2-10AWF-Q	1	#2 AWG	#10	0.63	0.6	1.16	0.1	1.76	Brown	P33	10	33	1 1/4
LCC2-10BWF-Q	1		#10	0.75	0.6	1.16	0.1	1.89	Brown	P33	10	33	1 1/4
LCC2-14AWF-Q	1		1/4	0.63	0.6	1.16	0.1	1.86	Brown	P33	10	33	1 1/4
LCC2-14BWF-Q	1		1/4	0.75	0.6	1.16	0.1	1.99	Brown	P33	10	33	1 1/4
LCC2-14DWF-Q	1		1/4	1	0.6	1.16	0.1	2.24	Brown	P33	10	33	1 1/4
LCC2-56BWF-Q	1		5/16	0.75	0.66	1.16	0.1	2.11	Brown	P33	10	33	1 1/4
LCC2-56CWF-Q	1		5/16	0.88	0.66	1.16	0.1	2.24	Brown	P33	10	33	1 1/4
LCC2-38BWF-Q	1		3/8	0.75	0.66	1.16	0.1	2.19	Brown	P33	10	33	1 1/4
LCC2-38CWF-Q	1		3/8	0.88	0.66	1.16	0.1	2.31	Brown	P33	10	33	1 1/4
LCC2-38DWF-Q	1		3/8	1	0.66	1.16	0.1	2.44	Brown	P33	10	33	1 1/4
LCC2-38WF-Q	1		3/8	1.75	0.66	1.16	0.1	3.19	Brown	P33	10	33	1 1/4
LCC2-12WF-Q	1		1/2	1.75	0.75	1.16	0.08	3.61	Brown	P33	10	33	1 1/4
LCC1-14AWF-E	1	#1 AWG	1/4	0.63	0.7	1.36	0.11	1.94	Green	P37	11	37	1 7/16
LCC1-14BWF-E	1		1/4	0.75	0.7	1.36	0.11	2.06	Green	P37	11	37	1 7/16
LCC1-56BWF-E	1		5/16	0.75	0.7	1.36	0.11	2.19	Green	P37	11	37	1 7/16
LCC1-56CWF-E	1		5/16	0.88	0.7	1.36	0.11	2.31	Green	P37	11	37	1 7/16
LCC1-38DWF-E	1		3/8	1	0.7	1.36	0.11	2.51	Green	P37	11	37	1 7/16
LCC1-12WF-E	1		1/2	1.75	0.75	1.36	0.09	3.68	Green	P37	11	37	1 7/16
LCC1/0-14AWF-X	1	1/0 AWG	1/4	0.63	0.76	1.44	0.12	2.08	Pink	P42	12	42	1 1/2
LCC1/0-14BWF-X	1		1/4	0.75	0.76	1.44	0.12	2.2	Pink	P42	12	42	1 1/2
LCC1/0-14DWF-X	1		1/4	1	0.76	1.44	0.12	2.45	Pink	P42	12	42	1 1/2
LCC1/0-38DWF-X	1		3/8	1	0.76	1.44	0.12	2.58	Pink	P42	12	42	1 1/2
LCC1/0-38WF-X	1		3/8	1.75	0.76	1.44	0.12	3.33	Pink	P42	12	42	1 1/2
LCC1/0-12DWF-X	1		1/2	1	0.8	1.44	0.12	2.85	Pink	P42	12	42	1 1/2
LCC1/0-12WF-X	1		1/2	1.75	0.8	1.44	0.12	3.75	Pink	P42	12	42	1 1/2
LCC2/0-14AWF-X	1	2/0 AWG	1/4	0.63	0.85	1.5	0.13	2.22	Black	P45	13	45	1 9/16
LCC2/0-14BWF-X	1		1/4	0.75	0.85	1.5	0.13	2.34	Black	P45	13	45	1 9/16
LCC2/0-56DWF-X	1		5/16	1	0.85	1.5	0.13	2.59	Black	P45	13	45	1 9/16
LCC2/0-38DWF-X	1		3/8	1	0.85	1.5	0.13	2.66	Black	P45	13	45	1 9/16
LCC2/0-12DWF-X	1		1/2	1	0.85	1.5	0.13	2.91	Black	P45	13	45	1 9/16
LCC2/0-12WF-X	1		1/2	1.75	0.85	1.5	0.13	3.82	Black	P45	13	45	1 9/16
LCC3/0-14BWF-X	1	3/0 AWG	1/4	0.75	0.96	1.5	0.13	2.42	Orange	P50	14	50	1 9/16
LCC3/0-56DWF-X	1		5/16	1	0.96	1.5	0.13	2.67	Orange	P50	14	50	1 9/16
LCC3/0-38DWF-X	1		3/8	1	0.96	1.5	0.13	2.73	Orange	P50	14	50	1 9/16
LCC3/0-12DWF-X	1		1/2	1	0.96	1.5	0.13	2.98	Orange	P50	14	50	1 9/16
LCC3/0-12WF-X	1		1/2	1.75	0.96	1.5	0.13	3.89	Orange	P50	14	50	1 9/16
LCC4/0-14AWF-X	1	4/0 AWG	1/4	0.63	1.06	1.56	0.14	2.38	Purple	P54	15	54	1 5/8
LCC4/0-14BWF-X	1		1/4	0.75	1.06	1.56	0.14	2.5	Purple	P54	15	54	1 5/8
LCC4/0-56DWF-X	1		5/16	1	1.06	1.56	0.14	2.77	Purple	P54	15	54	1 5/8
LCC4/0-38DWF-X	1		3/8	1	1.06	1.56	0.14	2.84	Purple	P54	15	54	1 5/8
LCC4/0-38WF-X	1		3/8	1.75	1.06	1.56	0.14	3.59	Purple	P54	15	54	1 5/8
LCC4/0-12DWF-X	1		1/2	1	1.06	1.56	0.14	3.07	Purple	P54	15	54	1 5/8
LCC4/0-12WF-X	1		1/2	1.75	1.06	1.56	0.14	3.98	Purple	P54	15	54	1 5/8
LCC250-56DWF-X	1	250 kcmil	5/16	1	1.17	1.61	0.14	2.83	Yellow	P62	16	62	1 11/16
LCC250-38DWF-X	1		3/8	1	1.17	1.61	0.14	2.9	Yellow	P62	16	62	1 11/16
LCC250-12DWF-X	1		1/2	1	1.17	1.61	0.14	3.13	Yellow	P62	16	62	1 11/16
LCC250-12WF-X	1		1/2	1.75	1.17	1.61	0.14	4.04	Yellow	P62	16	62	1 11/16
LCC300-38DWF-X	1	300 kcmil	3/8	1	1.19	2.24	0.16	2.88	White	P66	17	66	2 5/16
LCC300-12WF-X	1		1/2	1.75	1.19	2.24	0.16	4.06	White	P66	17	66	2 5/16
LCC350-14BWF-X	1	350 kcmil	1/4	0.75	1.28	2.24	0.17	2.46	Red	P71	18	71	2 5/16
LCC350-38DWF-X	1		3/8	1	1.28	2.24	0.17	2.94	Red	P71	18	71	2 5/16
LCC350-12WF-X	1		1/2	1.75	1.28	2.24	0.17	4.12	Red	P71	18	71	2 5/16
LCC400-14BWF-6	1	400 kcmil	1/4	0.75	1.39	2.3	0.18	2.54	Blue	P76	19	76	2 3/8
LCC400-38DWF-6	1		3/8	1	1.39	2.3	0.18	3.02	Blue	P76	19	76	2 3/8
LCC400-12WF-6	1		1/2	1.75	1.39	2.3	0.18	4.2	Blue	P76	19	76	2 3/8
LCC500-14BWF-6	1	500 kcmil	1/4	0.75	1.54	2.5	0.22	2.65	Brown	P87	20	87	2 9/16
LCC500-38DWF-6	1		3/8	1	1.54	2.5	0.22	3.13	Brown	P87	20	87	2 9/16
LCC500-12WF-6	1		1/2	1.75	1.54	2.5	0.22	4.31	Brown	P87	20	87	2 9/16
LCC600-38DWF-6	1	600 kcmil	3/8	1	1.7	2.69	0.26	3.26	Green	P94	22	94	2 3/4
LCC600-12WF-6	1		1/2	1.75	1.7	2.69	0.26	4.44	Green	P94	22	94	2 3/4

Code Conductor, Two-Hole, Long Barrel with Window, Narrow Tongue Lug

Type LCCN-W

Part

Copper Conductor Size

Stud Hole Size (In.)

Stud Hole Spacing

W

B

T

L

Color Code

Panduit Die Index No.‡

Burndy Die Index No.‡

T&B Die Index No.‡

Wire Strip Length

LCCN750-38DW-6

750 kcmil

3/8

1

1.3

2.88

0.28

5.72

Black

P106

24

106

2 15/16

LCCN750-12W-6

750 kcmil

1/2

1.75

1.3

2.88

0.28

6.66

Black

P106

24

106

2 15/16

Code Conductor, Two-Hole, Long Barrel with Corona Relief Taper Lug

Type LCCH

Part	Copper Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing	W	B	T	L	Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
LCCH1/0-12-X	1/0 AWG	1/2	1.75	0.8	1.44	0.12	4.86	Pink	P42	12	42	1 1/2
LCCH2/0-12-X	2/0 AWG	1/2	1.75	0.85	1.5	0.13	4.98	Black	P45	13	45	1 9/16
LCCH3/0-12-X	3/0 AWG	1/2	1.75	0.96	1.5	0.13	5.03	Orange	P50	14	50	1 9/16
LCCH4/0-12-X	4/0 AWG	1/2	1.75	1.06	1.56	0.14	5.13	Purple	P54	15	54	1 5/8
LCCH250-12-X	250 kcmil	1/2	1.75	1.17	1.61	0.14	5.23	Yellow	P62	16	62	1 1/16
LCCH300-12-X	300 kcmil	1/2	1.75	1.19	2.24	0.16	5.94	White	P66	17	66	2 5/16
LCCH350-12-X	350 kcmil	1/2	1.75	1.28	2.24	0.17	5.99	Red	P71	18	71	2 5/16
LCCH400-12-6	400 kcmil	1/2	1.75	1.39	2.3	0.18	6.1	Blue	P76	19	76	2 3/8
LCCH500-12-6	500 kcmil	1/2	1.75	1.54	2.5	0.22	6.36	Brown	P87	20	87	2 9/16
LCCH600-12-6	600 kcmil	1/2	1.75	1.7	2.69	0.26	6.63	Green	P94	22	94	2 3/4
LCCH750-12-6	750 kcmil	1/2	1.75	1.89	2.88	0.26	7.04	Black	P106	24	106	2 15/16
LCCH1000-12-3	1000 kcmil	1/2	1.75	2.17	3	0.32	7.29	White	P125	27	125	3 1/16

Flex Conductor, Two-Hole, Standard Barrel with Window Lug

Type LCDX

Part Number	Flex Conductor Size		Code Conductor Size	Stud Hole Size (In.)	Stud Hole Spacing(In.)	Figure Dimensions(In.)				Panduit Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length (In.)
	Class G, H, I, K, M	Diesel Locomotive				W	B	T	L
LCDX8-10A-L	#8 AWG	#8 AWG	#8 AWG	#10	0.63	0.41	0.42	0.08	1.74	Red	P21	49	21	1/2
LCDX8-14A-L				1/4	0.63	0.48	0.42	0.07	1.83	Red	P21	49	21	1/2
LCDX8-14B-L				1/4	0.75	0.48	0.42	0.07	1.95	Red	P21	49	21	1/2
LCDX8-14D-L				1/4	1	0.48	0.42	0.07	2.2	Red	P21	49	21	1/2
LCDX8-38D-L				3/8	1	0.6	0.42	0.05	2.42	Red	P21	49	21	1/2
LCDX6-10A-L	#6 AWG	#6 AWG	#6 AWG	#10	0.63	0.46	0.48	0.08	1.82	Blue	P24	7	24	9/16
LCDX6-10B-L				#10	0.75	0.46	0.48	0.08	1.94	Blue	P24	7	24	9/16
LCDX6-10G-L				#10	1.5	0.46	0.48	0.08	2.69	Blue	P24	7	24	9/16
LCDX6-10P-L				#10	0.69	0.46	0.48	0.08	1.88	Blue	P24	7	24	9/16
LCDX6-14A-L				1/4	0.63	0.48	0.48	0.08	1.91	Blue	P24	7	24	9/16
LCDX6-14B-L				1/4	0.75	0.48	0.48	0.08	2.03	Blue	P24	7	24	9/16
LCDX6-14D-L				1/4	1	0.48	0.48	0.08	2.28	Blue	P24	7	24	9/16
LCDX6-56D-L				5/16	1	0.56	0.48	0.07	2.4	Blue	P24	7	24	9/16
LCDX6-38D-L				3/8	1	0.62	0.48	0.06	2.5	Blue	P24	7	24	9/16
LCDX4-14A-L	#4 AWG	#5,#4,#3 AWG	#4 AWG	1/4	0.63	0.55	0.53	0.09	1.98	Gray	P29	8	29	5/8
LCDX4-14B-L				1/4	0.75	0.55	0.53	0.09	2.1	Gray	P29	8	29	5/8
LCDX4-14D-L				1/4	1	0.55	0.53	0.09	2.35	Gray	P29	8	29	5/8
LCDX4-56D-L				5/16	1	0.55	0.53	0.09	2.47	Gray	P29	8	29	5/8
LCDX4-38D-L				3/8	1	0.62	0.53	0.08	2.57	Gray	P29	8	29	5/8
LCDX2-14A-E*	#2 AWG	#2 AWG	#2 AWG	1/4	0.63	0.7	0.59	0.11	2.13	Brown	P33	10	33	11/16
LCDX2-14B-E*				1/4	0.75	0.7	0.59	0.11	2.25	Brown	P33	10	33	11/16
LCDX2-14D-E*				1/4	1	0.7	0.59	0.11	2.5	Brown	P33	10	33	11/16
LCDX2-56D-E*				5/16	1	0.7	0.59	0.11	2.63	Brown	P33	10	33	11/16
LCDX2-38D-E*				3/8	1	0.7	0.59	0.11	2.7	Brown	P33	10	33	11/16
LCDX2-12-E*				1/2	1.75	0.75	0.59	0.09	3.87	Brown	P33	10	33	11/16
LCDX1-14A-X	#1 AWG	#1 AWG	#1 AWG	1/4	0.63	0.76	0.66	0.12	2.29	Green	P37	11	37	3/4
LCDX1-14B-X				1/4	0.75	0.76	0.66	0.12	2.42	Green	P37	11	37	3/4
LCDX1-14D-X				1/4	1	0.76	0.66	0.12	2.67	Green	P37	11	37	3/4
LCDX1-56D-X				5/16	1	0.76	0.66	0.12	2.72	Green	P37	11	37	3/4
LCDX1-38D-X				3/8	1	0.76	0.66	0.12	2.8	Green	P37	11	37	3/4
LCDX1-12-X				1/2	1.75	0.8	0.66	0.12	3.97	Green	P37	11	37	3/4
LCDX1/0-14A-X	1/0 AWG	1/0 AWG	1/0 AWG	1/4	0.63	0.85	0.72	0.13	2.45	Pink	P42	12	42	3/4
LCDX1/0-14B-X				1/4	0.75	0.85	0.72	0.13	2.57	Pink	P42	12	42	3/4
LCDX1/0-56B-X				5/16	0.75	0.85	0.72	0.13	2.57	Pink	P42	12	42	3/4
LCDX1/0-56D-X				5/16	1	0.85	0.72	0.13	2.82	Pink	P42	12	42	3/4
LCDX1/0-38D-X				3/8	1	0.85	0.72	0.13	2.89	Pink	P42	12	42	3/4
LCDX1/0-12D-X				1/2	1	0.85	0.72	0.13	3.14	Pink	P42	12	42	3/4
LCDX1/0-12-X				1/2	1.75	0.85	0.72	0.13	4.05	Pink	P42	12	42	3/4
LCDX2/0-14A-X	2/0 AWG	2/0 AWG	2/0 AWG	1/4	0.63	0.96	0.83	0.13	2.59	Black	P45	13	45	7/8
LCDX2/0-14B-X				1/4	0.75	0.96	0.83	0.13	2.72	Black	P45	13	45	7/8
LCDX2/0-56D-X				5/16	1	0.96	0.83	0.13	2.97	Black	P45	13	45	7/8
LCDX2/0-38D-X				3/8	1	0.96	0.83	0.13	3.03	Black	P45	13	45	7/8
LCDX2/0-12D-X				1/2	1	0.96	0.83	0.13	3.28	Black	P45	13	45	7/8
LCDX2/0-12-X				1/2	1.75	0.96	0.83	0.13	4.19	Black	P45	13	45	7/8
LCDX3/0-14A-X	3/0 AWG	3/0 AWG	3/0 AWG	1/4	0.63	1.06	0.91	0.14	2.71	Orange	P50	14	50	1
LCDX3/0-56D-X				5/16	1	1.06	0.91	0.14	3.1	Orange	P50	14	50	1
LCDX3/0-38D-X				3/8	1	1.06	0.91	0.14	3.17	Orange	P50	14	50	1
LCDX3/0-12-X				1/2	1.75	1.06	0.91	0.14	4.31	Orange	P50	14	50	1
LCDX4/0-14A-X	4/0 AWG	4/0 AWG	4/0 AWG	1/4	0.63	1.19	1.03	0.16	2.74	Purple	P54	15	54	1 1/16
LCDX4/0-14B-X				1/4	0.75	1.19	1.03	0.16	2.96	Purple	P54	15	54	1 1/16
LCDX4/0-56D-X				5/16	1	1.19	1.03	0.16	3.31	Purple	P54	15	54	1 1/16
LCDX4/0-38D-X				3/8	1	1.19	1.03	0.16	3.34	Purple	P54	15	54	1 1/16
LCDX4/0-12D-X				1/2	1	1.19	1.03	0.16	3.61	Purple	P54	15	54	1 1/16
LCDX4/0-12E-X				1/2	1.25	1.19	1.03	0.16	3.89	Purple	P54	15	54	1 1/16
LCDX4/0-12-X				1/2	1.75	1.19	1.03	0.16	4.52	Purple	P54	15	54	1 1/16
LCDX250-38D-X	250 kcmil	262.6 kcmil	—	3/8	1	1.28	1.03	0.17	3.38	Yellow	P62	16	62	1 1/16
LCDX250-38-X				3/8	1.75	1.28	1.03	0.17	4.13	Yellow	P62	16	62	1 1/16
LCDX250-12E-X				1/2	1.25	1.28	1.03	0.17	3.93	Yellow	P62	16	62	1 1/16
LCDX250-12-X				1/2	1.75	1.28	1.03	0.17	4.56	Yellow	P62	16	62	1 1/16
LCDX300-38D-6	300 kcmil	313.1 kcmil	—	3/8	1	1.39	1.19	0.18	3.56	Red	P71	18	71H	1 1/4
LCDX300-12-6				1/2	1.75	1.39	1.19	0.18	4.74	Red	P71	18	71H	1 1/4
LCDX350-56D-6	350 kcmil	373.7 kcmil	—	5/16	1	1.54	1.29	0.22	3.71	Blue	P76	19	76H	1 3/8
LCDX350-38D-6				3/8	1	1.54	1.29	0.22	3.74	Blue	P76	19	76H	1 3/8
LCDX350-38-6				3/8	1.75	1.54	1.29	0.22	4.49	Blue	P76	19	76H	1 3/8
LCDX350-12E-6				1/2	1.25	1.54	1.29	0.22	4.29	Blue	P76	19	76H	1 3/8
LCDX350-12-6				1/2	1.75	1.54	1.29	0.22	4.92	Blue	P76	19	76H	1 3/8
LCDX450-38D-6	450 kcmil	444.4 kcmil	—	3/8	1	1.7	1.4	0.26	3.9	Brown	P87	20	87H	1 7/16
LCDX450-12-6				1/2	1.75	1.7	1.4	0.26	5.08	Brown	P87	20	87H	1 7/16
LCDX500-56D-6	500 kcmil	535.3 kcmil	—	5/16	1	1.89	1.48	0.26	4.05	Pink	P99	L99	99H	1 9/16
LCDX500-38D-6				3/8	1	1.89	1.48	0.26	4.08	Pink	P99	L99	99H	1 9/16
LCDX500-12E-6				1/2	1.25	1.89	1.48	0.26	4.76	Pink	P99	L99	99H	1 9/16
LCDX500-12-6				1/2	1.75	1.89	1.48	0.26	5.26	Pink	P99	L99	99H	1 9/16
LCDX600-12-6	600 kcmil	—	—	1/2	1.75	1.89	1.48	0.26	5.26	Pink	P99	400	99H	1 9/16
LCDX650-38D-6	—	646.4 kcmil	—	3/8	1	1.95	1.45	0.3	4.08	Black	P106	24	106H	1 1/2
LCDX650-12-6				1/2	1.75	1.95	1.45	0.3	5.26	Black	P106	24	106H	1 1/2
LCDX750-38D-3	—	777.7 kcmil	—	3/8	1	2.17	1.66	0.32	4.62	Yellow	P115	L115	115H	1 3/4
LCDX750-12E-3				1/2	1.25	2.17	1.66	0.32	5.06	Yellow	P115	L115	115H	1 3/4
LCDX750-12G-3				1/2	1.5	2.17	1.66	0.32	5.31	Yellow	P115	L115	115H	1 3/4
LCDX750-12-3				1/2	1.75	2.17	1.66	0.32	5.56	Yellow	P115	L115	115H	1 3/4
LCDX750-58G-3				5/8	1.5	2.17	1.66	0.32	5.37	Yellow	P115	L115	115H	1 3/4

Flex Conductor, Two-Hole, Standard Barrel with Window Lug, 45° Angle

Type LCDX-H

Part Number	Flex Conductor Size		Code Conductor Size	Stud Hole Size(In.)	Stud Hole Spacing (In.)	Figure Dimensions(In.)				Panduit Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length (In.)
	Class G, H, I, K, M	Diesel Locomotive				W	B	T	L
LCDX8-10AH-L	#8 AWG	#8 AWG	#8 AWG	#10	0.63	0.41	0.42	0.08	1.63	Red	P21	49	21	1/2
LCDX8-14AH-L				1/4	0.63	0.48	0.42	0.07	1.71	Red	P21	49	21	1/2
LCDX8-14BH-L				1/4	0.75	0.48	0.42	0.07	1.84	Red	P21	49	21	1/2
LCDX8-14DH-L				1/4	1	0.48	0.42	0.07	2.09	Red	P21	49	21	1/2
LCDX8-38DH-L				3/8	1	0.6	0.42	0.05	2.3	Red	P21	49	21	1/2
LCDX6-10AH-L	#6 AWG	#6 AWG	#6 AWG	#10	0.63	0.46	0.48	0.08	1.68	Blue	P24	7	24	9/16
LCDX6-10BH-L				#10	0.75	0.46	0.48	0.08	1.81	Blue	P24	7	24	9/16
LCDX6-10GH-L				#10	1.5	0.46	0.48	0.08	2.56	Blue	P24	7	24	9/16
LCDX6-10PH-L				#10	0.69	0.46	0.48	0.08	1.74	Blue	P24	7	24	9/16
LCDX6-14AH-L				1/4	0.63	0.48	0.48	0.08	1.77	Blue	P24	7	24	9/16
LCDX6-14BH-L				1/4	0.75	0.48	0.48	0.08	1.89	Blue	P24	7	24	9/16
LCDX6-14DH-L				1/4	1	0.48	0.48	0.08	2.14	Blue	P24	7	24	9/16
LCDX6-56DH-L				5/16	1	0.56	0.48	0.07	2.26	Blue	P24	7	24	9/16
LCDX6-38DH-L				3/8	1	0.62	0.48	0.06	2.35	Blue	P24	7	24	9/16
LCDX4-14AH-L	#4 AWG	#5,#4,#3 AWG	#4 AWG	1/4	0.63	0.55	0.53	0.09	1.83	Gray	P29	8	29	5/8
LCDX4-14BH-L				1/4	0.75	0.55	0.53	0.09	1.96	Gray	P29	8	29	5/8
LCDX4-14DH-L				1/4	1	0.55	0.53	0.09	2.21	Gray	P29	8	29	5/8
LCDX4-56DH-L				5/16	1	0.55	0.53	0.09	2.33	Gray	P29	8	29	5/8
LCDX4-38DH-L				3/8	1	0.62	0.53	0.08	2.42	Gray	P29	8	29	5/8
LCDX2-14AH-E*	#2 AWG	#2 AWG	#2 AWG	1/4	0.63	0.7	0.59	0.11	1.92	Brown	P33	10	33	11/16
LCDX2-14BH-E*				1/4	0.75	0.7	0.59	0.11	2.04	Brown	P33	10	33	11/16
LCDX2-14DH-E*				1/4	1	0.7	0.59	0.11	2.29	Brown	P33	10	33	11/16
LCDX2-56DH-E*				5/16	1	0.7	0.59	0.11	2.42	Brown	P33	10	33	11/16
LCDX2-38DH-E*				3/8	1	0.7	0.59	0.11	2.49	Brown	P33	10	33	11/16
LCDX2-12H-E*				1/2	1.75	0.75	0.59	0.09	3.66	Brown	P33	10	33	11/16
LCDX1-14AH-X	#1 AWG	#1 AWG	#1 AWG	1/4	0.63	0.76	0.66	0.12	2.06	Green	P37	11	37	3/4
LCDX1-14BH-X				1/4	0.75	0.76	0.66	0.12	2.18	Green	P37	11	37	3/4
LCDX1-14DH-X				1/4	1	0.76	0.66	0.12	2.43	Green	P37	11	37	3/4
LCDX1-56DH-X				5/16	1	0.76	0.66	0.12	2.49	Green	P37	11	37	3/4
LCDX1-38DH-X				3/8	1	0.76	0.66	0.12	2.56	Green	P37	11	37	3/4
LCDX1-12H-X				1/2	1.75	0.8	0.66	0.12	3.73	Green	P37	11	37	3/4
LCDX1/0-14AH-X	1/0 AWG	1/0 AWG	1/0 AWG	1/4	0.63	0.85	0.72	0.13	2.21	Pink	P42	12	42	3/4
LCDX1/0-14BH-X				1/4	0.75	0.85	0.72	0.13	2.33	Pink	P42	12	42	3/4
LCDX1/0-56BH-X				5/16	0.75	0.85	0.72	0.13	2.33	Pink	P42	12	42	3/4
LCDX1/0-56DH-X				5/16	1	0.85	0.72	0.13	2.58	Pink	P42	12	42	3/4
LCDX1/0-38DH-X				3/8	1	0.85	0.72	0.13	2.64	Pink	P42	12	42	3/4
LCDX1/0-12DH-X				1/2	1	0.85	0.72	0.13	2.89	Pink	P42	12	42	3/4
LCDX1/0-12H-X				1/2	1.75	0.85	0.72	0.13	3.81	Pink	P42	12	42	3/4
LCDX2/0-14AH-X	2/0 AWG	2/0 AWG	2/0 AWG	1/4	0.63	0.96	0.83	0.13	2.3	Black	P45	13	45	7/8
LCDX2/0-14BH-X				1/4	0.75	0.96	0.83	0.13	2.43	Black	P45	13	45	7/8
LCDX2/0-56DH-X				5/16	1	0.96	0.83	0.13	2.68	Black	P45	13	45	7/8
LCDX2/0-38DH-X				3/8	1	0.96	0.83	0.13	2.74	Black	P45	13	45	7/8
LCDX2/0-12DH-X				1/2	1	0.96	0.83	0.13	3.03	Black	P45	13	45	7/8
LCDX2/0-12H-X				1/2	1.75	0.96	0.83	0.13	3.9	Black	P45	13	45	7/8
LCDX3/0-14AH-X	3/0 AWG	3/0 AWG	3/0 AWG	1/4	0.63	1.06	0.91	0.14	2.39	Orange	P50	14	50	1
LCDX3/0-56DH-X				5/16	1	1.06	0.91	0.14	2.78	Orange	P50	14	50	1
LCDX3/0-38DH-X				3/8	1	1.06	0.91	0.14	2.85	Orange	P50	14	50	1
LCDX3/0-12H-X				1/2	1.75	1.06	0.91	0.14	3.99	Orange	P50	14	50	1
LCDX4/0-14AH-X	4/0 AWG	4/0 AWG	4/0 AWG	1/4	0.63	1.19	1.03	0.16	2.67	Purple	P54	15	54	1 1/16
LCDX4/0-14BH-X				1/4	0.75	1.19	1.03	0.16	2.79	Purple	P54	15	54	1 1/16
LCDX4/0-56DH-X				5/16	1	1.19	1.03	0.16	3.04	Purple	P54	15	54	1 1/16
LCDX4/0-38DH-X				3/8	1	1.19	1.03	0.16	3.07	Purple	P54	15	54	1 1/16
LCDX4/0-12DH-X				1/2	1	1.19	1.03	0.16	3.36	Purple	P54	15	54	1 1/16
LCDX4/0-12EH-X				1/2	1.25	1.19	1.03	0.16	3.62	Purple	P54	15	54	1 1/16
LCDX4/0-12H-X				1/2	1.75	1.19	1.03	0.16	4.25	Purple	P54	15	54	1 1/16
LCDX250-38DH-X	250 kcmil	262.6 kcmil	—	3/8	1	1.28	1.03	0.17	3.11	Yellow	P62	16	62	1 1/16
LCDX250-38H-X				3/8	1.75	1.28	1.03	0.17	3.86	Yellow	P62	16	62	1 1/16
LCDX250-12EH-X				1/2	1.25	1.28	1.03	0.17	3.66	Yellow	P62	16	62	1 1/16
LCDX250-12H-X				1/2	1.75	1.28	1.03	0.17	4.29	Yellow	P62	16	62	1 1/16
LCDX300-38DH-6	300 kcmil	313.1 kcmil	—	3/8	1	1.39	1.19	0.18	3.29	Red	P71	18	71H	1 1/4
LCDX300-12H-6				1/2	1.75	1.39	1.19	0.18	4.47	Red	P71	18	71H	1 1/4
LCDX350-56DH-6	350 kcmil	373.7 kcmil	—	5/16	1	1.54	1.29	0.22	3.4	Blue	P76	19	76H	1 3/8
LCDX350-38DH-6				3/8	1	1.54	1.29	0.22	3.43	Blue	P76	19	76H	1 3/8
LCDX350-38H-6				3/8	1.75	1.54	1.29	0.22	4.18	Blue	P76	19	76H	1 3/8
LCDX350-12EH-6				1/2	1.25	1.54	1.29	0.22	3.98	Blue	P76	19	76H	1 3/8
LCDX350-12H-6				1/2	1.75	1.54	1.29	0.22	4.61	Blue	P76	19	76H	1 3/8
LCDX450-38DH-6	450 kcmil	444.4 kcmil	—	3/8	1	1.7	1.4	0.26	3.75	Brown	P87	20	87H	1 7/16
LCDX450-12H-6				1/2	1.75	1.7	1.4	0.26	4.74	Brown	P87	20	87H	1 7/16
LCDX500-56DH-6	500 kcmil	535.3 kcmil	—	5/16	1	1.89	1.48	0.26	3.7	Pink	P99	L99	99H	1 9/16
LCDX500-38DH-6				3/8	1	1.89	1.48	0.26	3.73	Pink	P99	L99	99H	1 9/16
LCDX500-12EH-6				1/2	1.25	1.89	1.48	0.26	4.41	Pink	P99	L99	99H	1 9/16
LCDX500-12H-6				1/2	1.75	1.89	1.48	0.26	4.91	Pink	P99	L99	99H	1 9/16
LCDX600-12H-6	600 kcmil	—	—	1/2	1.75	1.89	1.48	0.26	4.91	Pink	P99	400	99H	1 9/16
LCDX650-38DH-6	—	646.4 kcmil	—	3/8	1	1.95	1.45	0.3	3.74	Black	P106	24	106H	1 1/2
LCDX650-12H-6				1/2	1.75	1.95	1.45	0.3	4.92	Black	P106	24	106H	1 1/2
LCDX750-38DH-3	—	777.7 kcmil	—	3/8	1	2.17	1.66	0.32	4.21	Yellow	P115	L115	115H	1 3/4
LCDX750-12EH-3				1/2	1.25	2.17	1.66	0.32	4.65	Yellow	P115	L115	115H	1 3/4
LCDX750-12GH-3				1/2	1.5	2.17	1.66	0.32	4.9	Yellow	P115	L115	115H	1 3/4
LCDX750-12H-3				1/2	1.75	2.17	1.66	0.32	5.15	Yellow	P115	L115	115H	1 3/4
LCDX750-58GH-3				5/8	1.5	2.17	1.66	0.32	4.9	Yellow	P115	L115	115H	1 3/4

Flex Conductor, Two-Hole, Standard Barrel with Window Lug, 90° Angle

Type LCDX-F
