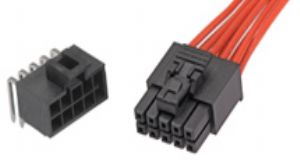

Molex Nano-Fit™ 电源连接器

概述

产品亮点
类别:
电源连接器
电流:
4.0A
间距:
2.50 毫米
额外选件:
颜色和键控极化选项


特性和优点
The smallest, fully-isolated headers in the market
Deliver up to 69% PCB space savings
Multiple mechanical keying and color-coded options
Allow same-circuit, multiple-connector use with virtually no chance of cross mating
Color coding provides visual indication of the proper mating connector — enabling faster assembly
Optional TPA (Terminal Position Assurance) retainer
Ensures terminals are fully seated in the housing to reduce terminal back-out
Retains terminals if main retention feature fails
Ultra-low mate force terminal
Reduces operator fatigue and improves assembly compliance for high-circuit applications
Positive-lock housing with anti-snag design
Ensures mated connector assemblies will not accidentally disengage
Provides an audible click while mating.Protects latch from damage due to wire snags
完全隔离的端子
Protect against potential damage of the header and receptacle terminals during handling and mating
Terminal interface with four points of contact
提供冗余的次级电流路径,实现长期的电气性能和可靠性



Power-application customers are faced with the decision of choosing between headers with exposed terminals, leaving connectors susceptible to damage; or large, fully-isolated headers that take up too much space.Compact Nano-Fit connectors provide design engineers fully-protected header terminals in a small package.Another challenge that design engineers face is meeting the requirement to use multiple headers of the same circuit size on one PCB.This complicates the assembly due to possible mis-mating of a receptacle to the wrong header.Nano-Fit connectors offer different mechanical keying options, enabling customers to reduce the risk of cross mating while improving assembly speed with color-coding logic.
