概述

Applications
Designed to be mounted on MIL-DTL-38999, 83723, 26482, 5015, or commonly used connectors
Aerospace, Defense, Ground Vehicles, Control Circuits – where excellent EMI and shielding performance is required

STANDARDS & SPECS
Finish Types: SAE-AMS-PQ-P-416 cadmium olive drab, SAE-AMS-C-26074 Class 3, grade B electroless nickel (others available upon request)
Tyco Electronics Specification RB-117
RPIP-696-21 Installation Procedure for FlexiScreen backshells

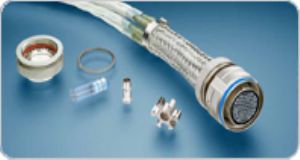

Kit contents
1 backshell assembly
1 multi-position star
1 band strap

Electrical
DC resistance:     <5.0 mΩ braid to backshell per SAE-AS85049
                        <10.0 mΩ braid to cable braids per RB-117
Shielding
effectiveness:     Complies with ANSI/NEMA EC 61-2005
Lightning strike:   No damage or degradation of components.
                        Tested per RTCA/DO-160F, Section 22

Physical or other properties
Vibration:                  Tested per EAI-364-28, test condition VI, Letter J
Mechanical shock:       Tested per EAI-364-27, test condition D
Cable pull-out:            Tested per MIL-STD-1344, method 2009-1, test condition A
Operating
temperature:             -65°C to +150°C
