Molex MagKrimp™ 连接器、端子和接头

概述

产品亮点
类别:
无焊端子
线径规格 AWG:
2 - 14
方式:
Splices, Ring and Spade Terminals
端接方式:
无需去除绝缘层即可端接电磁线

特性和优点
Sharp teeth or serrations that penetrate the insulating varnish on magnet wire
Stripping of insulation is not required which saves time and money
Accommodates round, square or rectangular magnet wire
Provides versatility for any magnet wire application
Available in ring, spade or splices
Can attach wire directly to barrier strip or splice a stranded lead wire to the magnet wire
Open-barrel design
Allows for easy placement of square bar stock into barrel
Tin plated
Prohibits corrosion

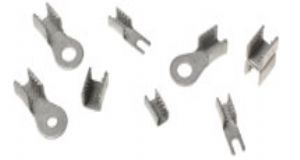

Molex offers a complete line of crimp terminals and splices that provide solutions for the splicing and tapping of copper and aluminum magnet wire.The MagKrimp™ products include ring and spade terminals with stud sizes from #6 through 1/2" as well as multiple splice sizes.Terminals and splices have an open side which permits easy access to wire and makes internal coil tapping easy.

Molex's MagKrimp™ terminals and splices are made from copper alloy, are tin-plated and designed to penetrate magnet wire insulation as they are applied, eliminating the need for stripping, brazing and welding.


MAGKRIMP RING AND SPADE TERMINALS

MAGKRIMP RING AND SPADE TERMINALS

MAGKRIMP RING AND SPADE TERMINALS

MAGKRIMP RING AND SPADE TERMINALS

MAGKRIMP SPLICES

MAGKRIMP SPLICES
