概述

产品亮点
类别：
无焊端子
线径规格 AWG：
22 AWG - 600 MCM
方式：
Funnel-Barrel Entry
绝缘：
Non-insulated

 特性和优点
Silver, brazed-seam terminal barrel design
Designed for tight termination under conditions of stress or wire pull
Allows crimping from any direction
Funnel-barrel entry terminal design
Facilitates fast and easy wire insertions
Constructed with high-quality, oxygen free Copper
Offering 100% conductivity and low resistance across the interface and termination
Tin plated
防止腐蚀
Serrations inside crimp barrel
Provides maximum tensile strength

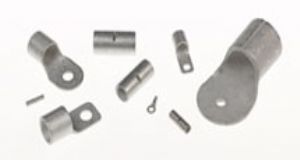

VersaKrimp™ terminals and splices are as versatile as they are tough.Bonded with a special silver brazing alloy, VersaKrimp brazed-seam terminal barrels simply can not split, remaining terminated under conditions of stress or wire pull.VersaKrimp terminals can be crimped from any direction.

VersaKrimp terminals are tin plated overall to reduce the potential for corrosion in harsh environments.Constructed with high-quality, oxygen-free copper, the conductivity is excellent and yields very low resistance across the interface and termination.A funnel-barrel entry terminal design facilitates easy and fast wire insertions.

VersaKrimp terminals meet UL requirements when used with Molex recommended tooling only.
